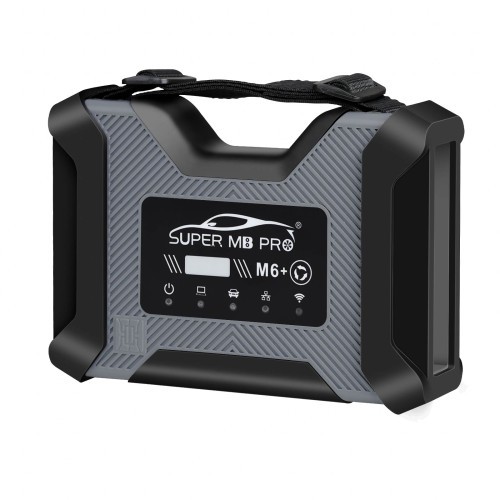

- Product Name: SUPER MB PRO M6 PRO full set with 6 cable
- Item NO.: Programmer-113
- Weight: 3 kg = 6.6139 lb = 105.8219 oz
- Volume: 2400 CBM
- Category: Key Programmer
- Creation Time: 2024-12-11
- SUPER MB PRO M6 PRO full set with 6 cable
Product Description
Based on Super MB PRO M6+, Super MB PRO M6+ Pro has greatly improved product functions and compatibility. It has added real-time display of vehicle voltage and is 100% compatible with the original Mercedes-Benz software.Super MB Pro M6+ PRO Full Package for Doip Benz Diagnostic Tool Support BMW Aicoder E-SYS and Immercode, Bimmerlink APPBased on Super MB PRO M6+, Super MB PRO M6+ Pro has greatly improved product functions and compatibility. It has added real-time display of vehicle voltage and is 100% compatible with the original Mercedes-Benz software.Product Features:1.100% compatible with the original Mercedes-Benz software.2.The front label of the M6+ Pro uses a design with trademark rights and art copyrights to improve product recognition. It has dded a multi-function switch button to switch to BWM test with one click.3.The communication between the M6+ Pro and the computer is through a USB3.0 cable or a ethernet cable, which improves the compatibility of the product with computers and tablets. (Compatible with both old and new computers and tablets, no need to choose old-fashioned computers and tablets with network ports.)4.M6+ Pro supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the M6+ Pro to a local computer that can access the Internet, and we can remotely provide customers with paid diagnosis and detection services of vehicle failure. Customers can also set up a local remote diagnostic test in the local area network. The above ways greatly improve the product flexibility.5.M6+ Pro supports BMW E-SYS, Aicoder, wired and wireless programming and coding of F and G series, and supports BMW modification, hidden functions activation.6.M6+ Pro supports BMW APP software, provides mobile phone English version of Bimmercode (coding hidden functions activation) Bimmerlink (diagnostics codes clearing) and other mobile phone software, supports MHD .Bimmergeeks .. XHP Flashtool. ODIS-e.XDelete.THOR-the M Flasher.PRO- Tool and other mobile apps.7. M6+ Pro supports vehicles with DOIP communication protocol, such as the new Volkswagen, Audi, Skoda, Bentley, Lambo, etc. A dedicated transition button is provided.8. Support new models such as W223 c206 213 167.
Product Functions:M6+ Pro, M6+ and M6 product function comparison chartM6 Product Functions M6+ Product Functions M6+ Pro Functions XENTRY √ √ √ XENTRY Truck √ √ √ DTS √ √ √ VIDEO √ √ √ MB DOIP √ √ √ MB WIFI √ √ √ PC USB × √ √ PC RJ45 √ × √ Vehicle Voltage Real-time Display × × √ BWM Aicoder × √ √ BWM E-SYS × √ √ BWM APP × √ √ Other DOIP × √ √ M6+ Pro Connection Instructions

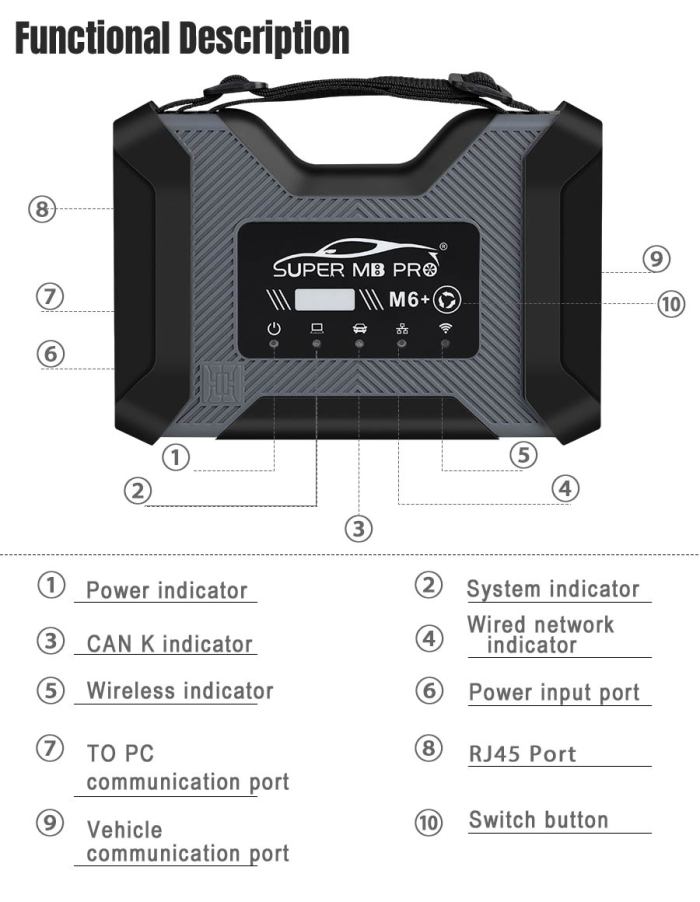

1. Connection between MB diagnostic software and hardware(1)Connect the M6+ Pro hardware box to the car diagnostic interface via the test line. The red indicator light ① on the host is always on, and the system indicator ② is flashing during startup. After startup, ② is always on and beeps once, indicating the startup is finished.(2)Wired connection: Connect the USB port ⑦or the RJ45 port⑧ of the M6+ Pro hardware box to the USB or the RJ45 port of the computer or tablet via a USB cable or a ethernet cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and the IP address of the network connection property will be changed to 169.254.255.*, Subnet mask: 255.255.0.0, Default gateway 169.254.255.255, Preferred DNS: 169.254.255.255, click “Advanced”, add multiple IP addresses as 172.29.127.*, 255.255.0.0. After the computer or tablet is connected to the network, ④ the indicator light will be on.

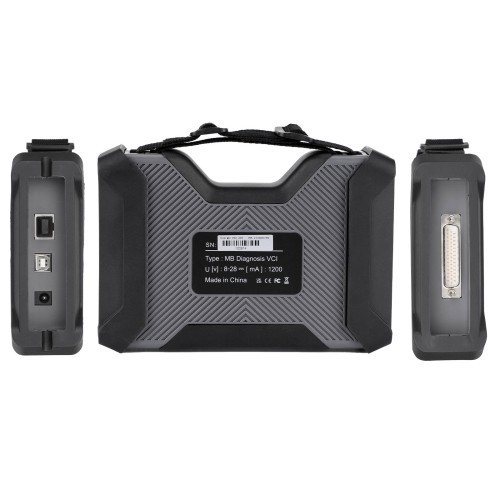

(3) Wireless connection: You cannot find the wireless network by plugging in the USB or ethernet cable. Unplug the USB or ethernet cable from the M6+ Pro hardware box port, and you will find a M6+ Pro DOIP-**** network on the computer or tablet, just connect it. ⑤ The green light of the wireless indicator is always on, the wired light is off, no setting is required, the password is 123456789.(4) After opening the BEN software lock on the computer side, the original diagnostic test software can be used normally.(5) For remote C-end operation, please consult us.2. Connection between BWM software and hardware(1)Connect the M6+ Pro hardware box to the car diagnostic interface via the test line. The red indicator light ① on the host is always on, and the system indicator ② is flashing during startup. After startup, it is always on and beeps once, indicating the startup is finished.(2)Wired connection: Connect the USB port ⑦or the RJ45 port⑧ of the M6+ Pro hardware box to the USB or the RJ45 port of the computer or tablet via a USB cable or a ethernet cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and change the network connection attribute IP address to 169.254.255.*, Subnet mask: 255.255.0.0, Default gateway 169.254.255.255, Preferred DNS: 169.254.255.255, Click “Advanced” and add a multi-IP address as 169.254.0.* 255.255.255.0. After the computer or tablet is connected to the network, the indicator light ④ will be always on. Press and hold the switch button ⑩ on the side for 3 seconds and then release it. You can see that the ④ green indicator light is always on and then flashing, indicating that the test can be performed normally. It will return to the initial state after it is powered on again.
(3)The wireless network can NOT be found by plugging in the USB or ethernet cable. Unplug the USB or ethernet cable from the M6+ Pro hardware box port, and you will find a M6+ Pro DOIP-**** network on the computer or tablet. You can connect without any settings, and the password is 123456789, ⑤The wireless indicator green light is always on, ④The wired indicator is off. Press and hold the ⑩ switch button on the side for 3 seconds and release it, you can see ⑤the wireless green indicator light is always on and turns to flashing, indicating that the test can be performed normally. It will return to the initial state after it is powered on again.(4) The computer-side BWM software adopts wired or wireless connection, and the mobile phone BWM APP software adopts wireless connection.(5) For remote C-end operation, please consult us.3. For DOIP function and hardware connection of other diagnostic test software, please refer to BWM software and hardware connection method.

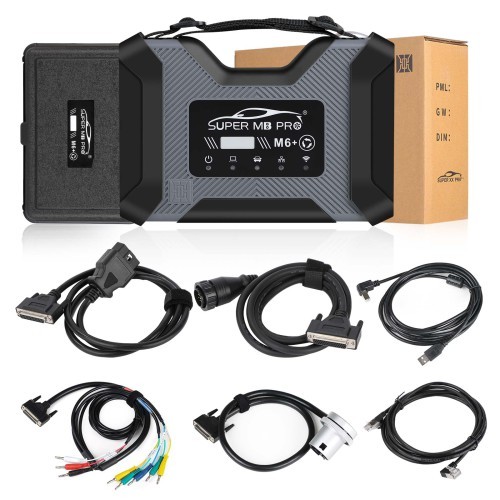

Product Accessories Comparison Chart
SUPER MB PRO M6+PRO
FULL1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable
1pc x Ethernet cableSUPER MB PRO M6+PRO
OBD1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB cableSUPER MB PRO M6+PRO
Truck1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB cable
1pc x 14PIN Cable

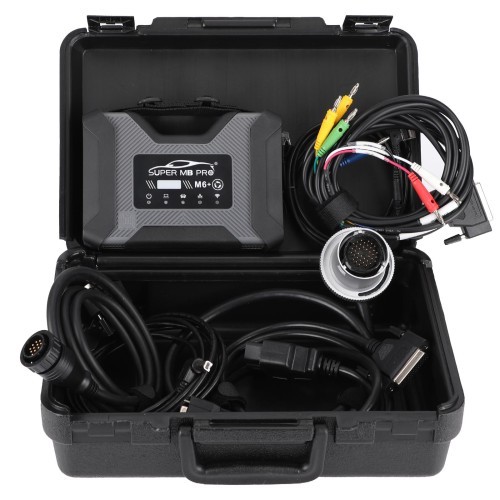

Package Includes:
1pc x SUPER MB PRO M6+ Pro Host1pc x OBD2 16pin Cable1pc x USB Cable1pc x 38PIN Cable1pc x 14PIN Cable1pc x 4PIN Cable
1pc x Ethernet cable
