    • Product Name: 2024 GODIAG GT107 DSG Gearbox Adapter with GT105 II IMMO Prog AD For DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW
    • Item NO.: GODIAG-13
    • Weight: 0.3 kg = 0.6614 lb = 10.5822 oz
    • Volume: 240 CBM
    • Category: Key Programmer > GODIAG Brand
    • Creation Time: 2024-12-11
    • 2024 GODIAG GT107 DSG Gearbox Adapter with GT105 II IMMO Prog AD For DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW

    Product Description

    1. GODIAG GT107 DSG gearbox connection adapter,DSG Gearbox maintenance engineers can clone, diagnose and repair DSG Gearbox ECU and can also read, write and adjust data for DSG Gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.
    2. GODIAG GT105 II is the upgraded version Of GODIAG GT105,Newly added 5 new functions: vehicle voltage display, car remote control battery CR2032 battery test, car battery voltage alarm prompt(lower than 11V), TOYOTA steering angle matching, Lamborghini ID48 key IMMO auxiliary activation.
    GODIAG GT107 DSG Gearbox Adapter with GT105 II IMMO Prog AD

    Description:

    GODIAG GT107 ECU IMMO Kit is a DSG gearbox connection adapter. DSG Gearbox maintenance engineers can clone, diagnose and repair DSG Gearbox ECU and can also read, write and adjust data for DSG Gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.

    GODIAG GT105 II is the upgraded version Of GODIAG GT105,Newly added 5 new functions: vehicle voltage display, car remote control battery CR2032 battery test, car battery voltage alarm prompt(lower than 11V), TOYOTA steering angle matching, Lamborghini ID48 key IMMO auxiliary activation.

    GODIAG GT107 DSG Gearbox Adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose “Auto”, and for diagnosis you can choose ”Manual”. For other software kessv2, DQ200, DQ250, DQ500 you can also choose "Manual".

    Moreover, with the car battery power, the adapter can directly read and write DSG Gearbox data and you can clearly check the communication status during the data reading and writing process.

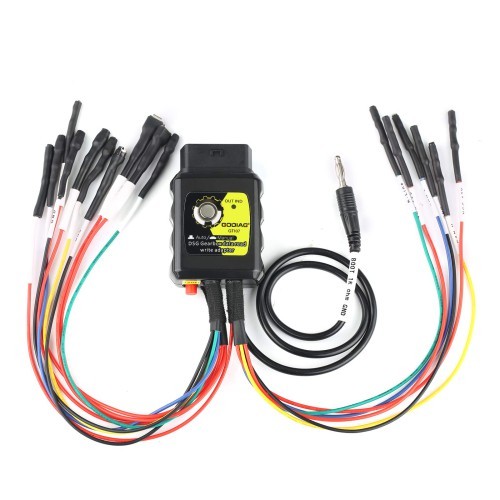

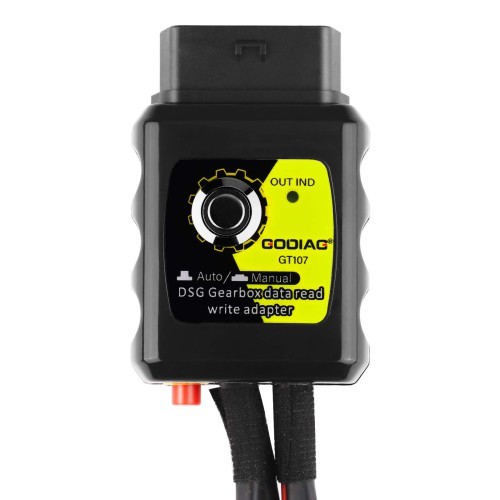

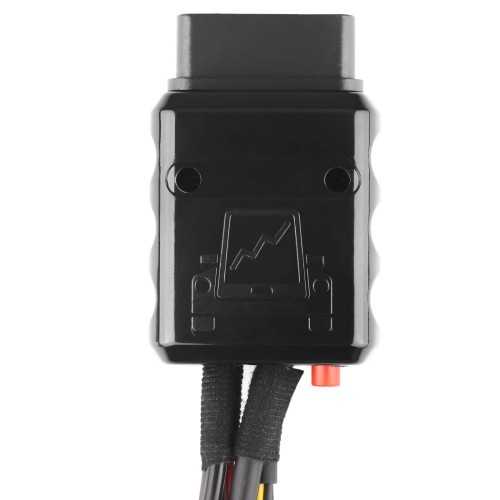

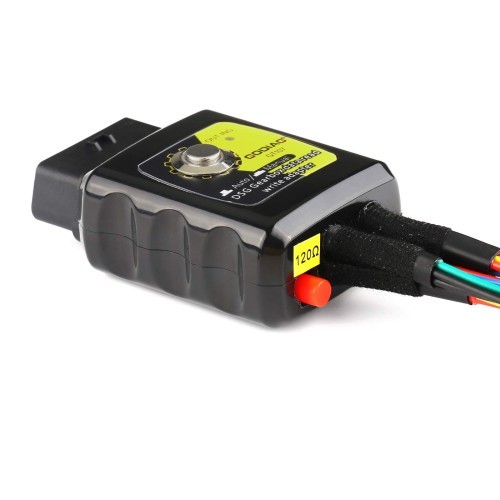

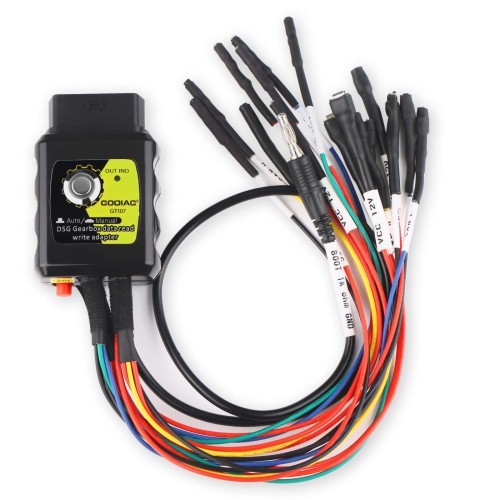

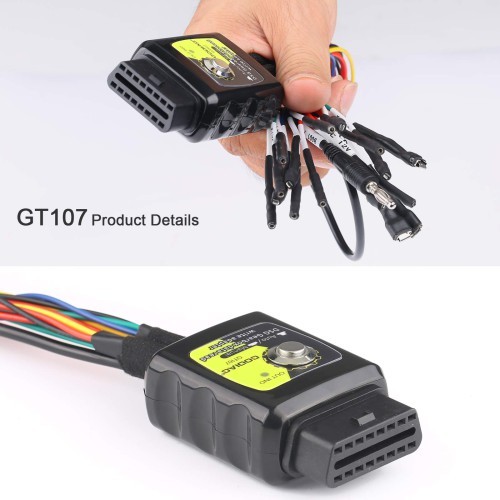

    GODIAG GT107 DSG Gearbox Adapter


    GODIAG GT107 DSG Gearbox Adapter

    GODIAG GT107 DSG Gearbox Adapter

    Connection Diagram & Operation:

    Used with PCMtuner:

    Easy Operation:
    1. Connect GODIAG GT107 to the gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501.
    2. Connect GODIAG ECU IMMO Prog AD and connect 12V 2A DC power supply.
    3. The GODIAG GT107 analog ignition switch is in “Auto” mode if it is not pressed, and it is in “Manual” mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading)
    4. Connect PCMFlash, PCMTuner J2534passthru.
    5. Connect the computer to open the software and select “Auto”.

    Used on the Car:

    Easy Operation:
    1. Connect GODIAG GT107 to the gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501.
    2. Connect the GODIAG ECU IMMO Prog AD and connect the vehicle battery.
    3. The GODIAG GT107 analog ignition switch is in “Auto” mode if it is not pressed, and it is in “Manual” mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading).
    4. Connect PCMFlash, PCMTuner J2534passthru.
    5. Connect the computer to open the software and select “Auto”.

    Used with KESSV DQ200, DQ250, DQ500:

    Easy Operation:
    1. Connect GODIAG GT107 to gearbox ECU DQ250, DQ200, DQ500.
    2. Connect GODIAG ECU IMMO Prog AD and connect vehicle battery or 12v 3A power supply.
    3. Connect kessv2 device, and press down the GT107’s switch to make it in “Manual” ignition mode.
    4. Connect the computer to open the software.

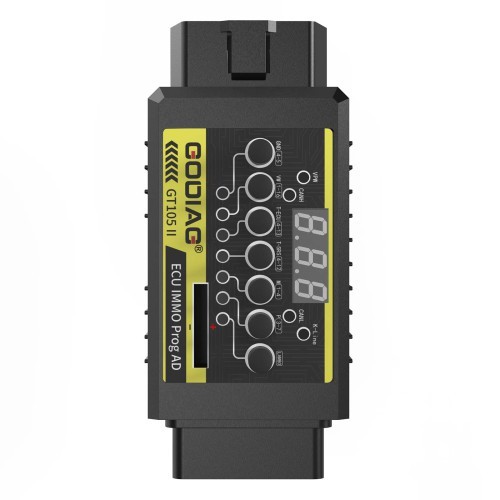

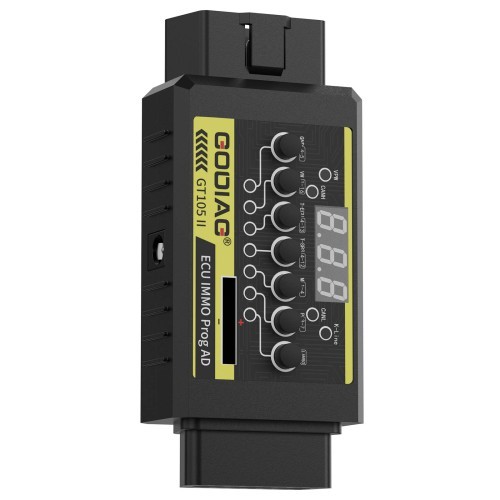

    GODIAG GT105 II ECU IMMO Prog AD

    GODIAG GT105 II ECU IMMO Prog AD

    Product Highlights:

    A full-protocol ECU connection line for ECU programming power adjustment
    OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
    PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
    Standard OBD2 independent PIN4, PIN5.
    Pure copper female seat supports repeated insertion and removal, and has a long service life.
    Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.
    The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
    The DC connector has a resettable 7A fuse.
    DC power interface, dedicated laboratory power connector.

    Product Functions:

    Vehicle voltage display
    Car remote control battery CR2032 battery test
    Car battery voltage alarm prompt(lower than 11V)
    TOYOTA steering angle matching
    Lamborghini ID48 key IMMO auxiliary activation

    IMMO AD power adapter function. After 2016,  for Ford all smart keys lost, GT105 II cooperates with VVDI equipment (OBDSTAR, AUTEL,) and other anti-theft matching equipment to program the keys.

    All car keys lost matching---wake up the meter or wake up the anti-theft ECU. (Support VAG 4th and 5th generation anti-theft, Toyota ECU synchronization, auxiliary Mitsubishi all key lost matching or all lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)

    VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device.  (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)

    On-site Maintenance
    The GT105 II power adapter cable obtains 12V power from the car battery. (For programming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of BMW BENZ IMMO ECU, or other car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles. )

    Provide 12V power supply for the key cutter (12V).
    Standard OBD2 full protocol ECU programming line. (With MPPS, FGTech, Kess v2, etc., for ECU data reading and writing, ECU cloning, ECU tuning, etc.) (Note: OBD2 full protocol ECU programming line is purchased separately)

    OBD Battery Replacement Tool
    Realize the uninterruptible power supply during the battery replacement, so it can prevent data loss, key failure or re-matching caused by power interruption during the battery replacement.

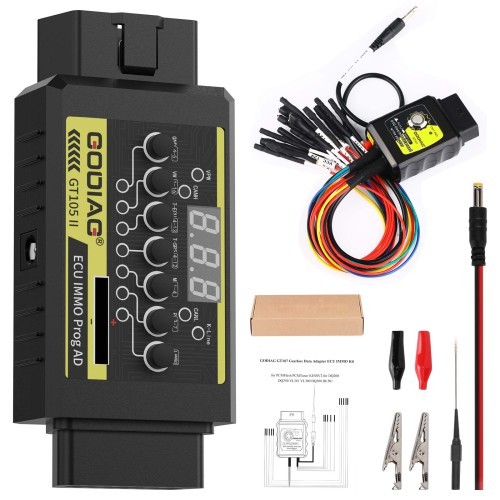

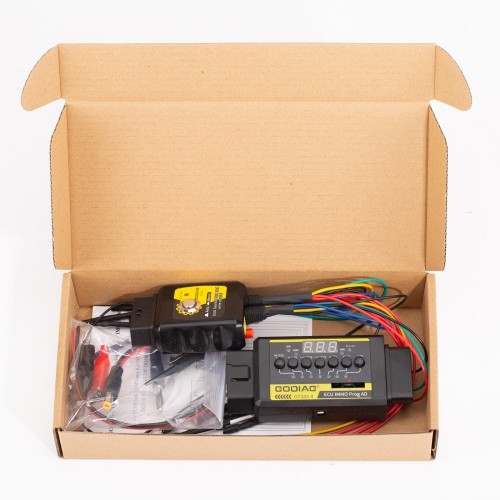

    Package Includes:

    1pc x GODIAG GT105 II ECU IMMO Prog AD
    1pc x DSG Adapter
    1pc x Power Cord with Battery Clip
    1pc x Probe
