LAUNCH X431 PAD Ⅶ Elite
or Whatsapp: +86-15889291896 or
Email: info@onlyda.com
-
- Product Name: LAUNCH X431 PAD Ⅶ Elite
- Item NO.: Launch-08
- Weight: 16 kg = 35.2740 lb = 564.3834 oz
- Volume: 9999.999999 CBM
- Category: Key Programmer > Launch Brand
- Creation Time: 2024-12-11
- LAUNCH X431 PAD Ⅶ Elite
Product Description
Launch X431 PAD VII Elite comes with a 13.3 inch large touch screen, full system diagnostic function, powerful service functions and Smartlink diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storage memories,X- 31 PAD VII Elite makes your intelligent diagnosis faster than ever.Launch X-431 PAD VII PAD 7 Elite Automotive Diagnostic Tool Support Online Coding Programming and ADAS Calibration
Promotion: Buy Launch X431 PAD VII Get Free Creader CRP123X, for US/ UK/ EU address Only, Valid till December 30th!
Launch X431 PAD VII Elite is an unexpected high-end professional diagnostic tool with LAUNCH Innovation technology, comes with the ADAS calibration function, 32 service functions, TPMS service and 8 extended modules functions such as videoscope,oscilloscope,sensor box,TPMS tools,key immobilizer and battery tester. New Smartlink C VCI powers technician a new diagnostic level without the limitation of diagnostic functions, tools and vehicle types. X431 Pad V II offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software.
Launch X-431 PAD VII PAD 7 Elite Highlights:
1. With 2 Years Free Update Online (Register after Oct 1st, 2022). After 2 Years, Please buy Update Service.
2. This is Global Version Without IP Limitation
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.
5. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
6. Full System Vehicle Coverage for U.S, Asian and European markets over 110 brands, which is continually updated
7. 32 Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. Support Online Programming for Car Brands: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru.
9. Guided Function for VW and AUDI
10. Support ADAS calibration Function and Eight Extended Mudule: videoscope,oscilloscope,sensor box,TPMS tools,key immobilizer and battery tester.
11. Build-in repair information and training video modules help to track and fix issue fast.
12. Upgrade and expand the X-431 PAD VII Elite with more software and service via the new module 'MALL' as demanded
Warm Notice:
1. For United States, Canada and Mexico, Launch PAD7 Elite can support online coding and programming for Mercedes and BMW only.
2. For Spain and Portugal, Launch PAD7 Elite can't perform any online programming.Other countries no limitation.
3. Launch X-431 PAD VII Elite can't support remote diagnosis
Superior Hardware Make Diagnosis Faster Than Ever
Launch X431 PAD VII Elite is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII Elite makes your intelligent diagnosis faster than ever. The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII Elite improves the connection between scanner and VCI into ‘Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.
Launch X431 Pad VII Elite Functions:
1. ALL System Diagnosis
Powerful all system diagnostic functions (intelligent diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly
BI-Directional Control [Active Test]
Check the DTCs and all systems communication status visually by topology module mapping function
2. 32 Service Functions:Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change
3. Advanced ECU Coding and Online Coding
J2534 ECU + Programming
Flash Hidden Functions
ECU Coding
Guided Functions
AutoAuth for FCA SGW
Anti-Theft IMMO Service
4. ADAS calibration Function and Extend 8 Module Functions
Optional ADAS calibration function increases more revenue.
X431 PAD VII Elite also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice
1. X431 VSP-600 Videoscope Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)
2. Launch i-TPMS Provides professional and comprehensive TPMS services for repair shops to develop their TPMS business. It can program LAUNCH LTR RF sensors for unlimited times to replace OE sensors.
3. X431 X-PROG III IMMO For VAG Group Above 3.5,advanced immobilizer & key programmer)Vehicles that require cloning are not compatible with this accessory
4. X431 BST360 Battery Test For Battery Cranking system Test, Battery Charging system Test, Battery Health Test)
5. S2-2 SensorBox Designed to test and simulate most vehicle sensors. quickly troubleshooting the ECU)
6. O2-2 ScopeBox Allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis.
7. X431 ADAS Moblie/ADAS PRO (Calibrate a wide range of camera-based & radar-based driver assistance systems)
8. X431 Printer (Print out diagnostic data/reports.)
5. More Advanced Functions:
Available Buy LAUNCH IMMO Function Authorization. Activate IMMO Plus function To Launch X431 PAD VII Elite
LAUNCH IMMO Software List:
Launch X431 PAD VII Elite Vehicle Coverage:
Passenger Vehicles:
1. Australian: AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo
Heavy Duty Vehicles (Need to Pay Heavy Duty License and Adpater Set):
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

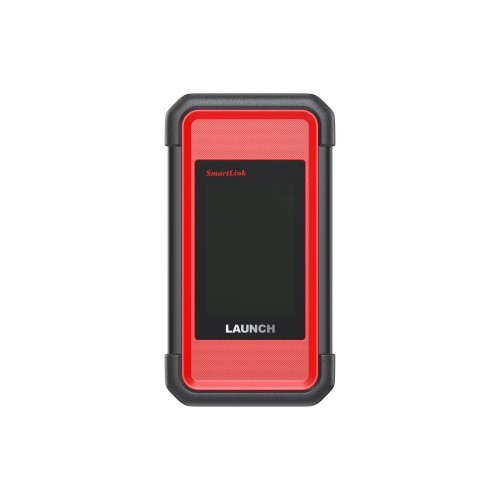

Smartlink C VCI
Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols
* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade
In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:
Comparison Table for Launch X431 PAD VII, PAD V and PAD III V2.0:Launch PAD III V2.0 Launch PAD V Launch PAD VII Elite
Configuration Display 10.1'' / IPS 1920*1200 10.1'' / IPS 1920*1200 13.3'' / 1920 x 1080 IPS CPU 2.0GHz Octa-core 2.0GHz Octa-core 2.0GHz Octa-core Memory 2 GB 4 GB 8 GB Storage 64 GB 64 GB 256 GB Camera 8MP Rear + 2MB Front 13MP Rear + 8MB Front 13MP Rear + 8MB Front VCI Connector DBScar IV Smartbox 3.0 Smartlink C VCI Connection Bluetooth 2.4GHz & 5GHz dual WiFi 2.4GHz & 5GHz dual WiFi Battery 15000mAh 9360mAh 71.1Wh (≈19000mAh) Adjustable Supporting Holder ● ● ● IP65 Waterproof & Dustproof ● ● Quick Charge Technology ● ● Charging Station ● PUSH PUSH Design Size (mm) 317 * 202 * 53 320 * 211 * 46 353 * 236 * 71 FEATURES Operating System Android™ 5.1.1 Android™ 7.1 Android™ 9.0 Full System Diagnosis ● ● ● OBD II Full Function ● ● ● Tech-to-Tech Remote Diangosis ● ● ● Smartlink Diagnosis ● Auto VIN Identification ● ● ● Bi-Directional Control ● ● ● Advanced Coding ● ● ● VW & AUDI Guided Function ● ● ● J2534 ● ● DoIP ● ● RP1210/D-PDU ● ● Advanced Programming ● ● ● Complete TPMS Service with X-431 TSGUN with X-431 TSGUN with X-431 TSGUN Advanced Key Programming with X-PROG 3 with X-PROG 3 with X-PROG 3 ADAS Calibration Optional Optional Optional Software Upgrade WiFi WiFi WiFi Vehicle Coverage Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional) Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional) Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional) Service Functions 21 26 32 by local diagnosis
Get More by Smartlink DiagnosisSERVICE FUNCTIONS Brake Reset ● ● ● Oil Reset ● ● ● SAS Reset ● ● ● Battery Match ● ● ● ABS Bleeding ● ● ● Elec. Throttle RLRN ● ● ● TPMS Reset ● ● ● DPF Regeneration ● ● ● Gear Learning ● ● ● Immobilizer ● ● ● Injector Coding ● ● ● Sunroof Initialization ● ● ● SUS Reset ● ● ● AFS Reset ● ● ● Gearbox Learning ● ● ● Adblue Reset ● ● ● Coolant Bleeding ● ● ● EGR Adaption ● ● ● Nox Sensor Reset ● ● ● Seats Call Bration ● ● ● Tyre Reset ● ● ● Windows Calibration ● ● A/F Reset ● ● Stop/Start Reset ● ● Transport Mode ● ● Language Change ● ● AC System Relearn ● ACC Calibration ● Engine Power Balance Monitoring ● GPF Regeneration ● Rotation Angle Sensor Calibration ● High-Voltage Battery Health Detection ● More Reset Services Via Smartlink Diagnosis Compatible Modules X-431 ADAS PRO ● ● ● X-431 ADAS Mobile ● ● ● X-PROG 3 Immobilizer ● ● ● X-PROG Immobilizer ● ● ● BST360 Battery Tester ● ● ● WiFi Printer ● ● ● X-431 TSGUN TPMS device ● ● ● VSP600 Videoscope ● ● ● X-431 O2-1 Osciloscope ● ● ● X-431 S2-2 Sensorbox ● ● ● HD III Module ● Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools
Smartlink Diagnosis: Diagnose vehicles without being on-site with Launch scan tools, OEM tools or other diagnostic tools of different brands.
Notice :
Launch X-431 PAD VII Elite can't support remote diagnosisLaunch X-431 PAD VII Elite Specification:
X-431 PAD VII Elite
Smartlink
Operation System
Andorid 9.0
N/A
CPU
2.0GHz Octa-core
N/A
Display
13.3' touch screen 1920*1080
3.5' touch screen 320*480
Memory
8GB
256M
Storage
256GB
8GB
Camera
Rear 13MP, Front 8MP
N/A
WiFi
Dual Band 2.4 & 5GHz
Dual Band 2.4 & 5GHz
Diagnostic Communication
WiFi
WiFi & BT & USB
Working Temperature
0℃~50℃
0℃~50℃
Dimension
353*236*71 mm
204*110*45 mm
Customer Feedback:
It has nice functions, it did things for me on Mercedes especially the online scn coding and variant coding is great much more than im608. Also on old Volkswagen I could never read DTC from it with im608 or other tools but pad 7 do it easy.

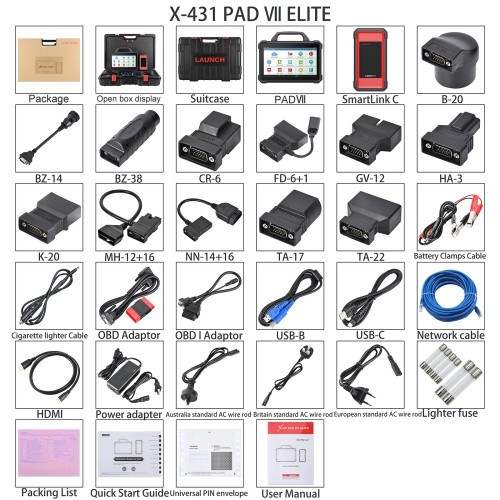

Launch X431 Pad VII Elite Package List:
1pc x PADVII tablet
1pc x SmartLink C
1pc x B-20 adapter
1pc x BZ-14 adapter
1pc x BZ-38 adapter
1pc x CR-6 adapter
1pc x FD-6+1 adapter
1pc x GV-12 adapter
1pc x HA-3 adapter
1pc x K-20 adapter
1pc x MH-12+16 adapter
1pc x NN-14+16 adapter
1pc x TA-17 adapter
1pc x TA-22 adapter
1pc x Battery clamps cable
1pc x Cigarette lighter cable
1pc x OBD adapter
1pc x OBD I adapter
1pc x USB-B cable
1pc x USB-C cable
1pc x Network cable
1pc x HDMI cable
1pc x Power adapter
1pc x Australia standard AC wire rod
1pc x Britain standard AC wire rod
1pc x European standard AC wire rod
6pcs x lighter fuses
1pc x Packing list
1pc x Quick start guide
1pc x Universal PIN envelope
1pc x User manual
1pc x Suitcase
1pc x Carton
