(ship from america )Autel MaxiIM IM508S Key programmer 2 years free update

Name: (ship from america )Autel MaxiIM IM508S Key programmer 2 years free update
Brand: Autel
SKU: 3Autel-13B
Price: 1139 USD
Availability: InStock

US$ 1139.00

Add to Cart

Buy Now

Free Shipping

Looking for tech support? Please contact sales manager
or Whatsapp: +86-15889291896 or
Email: info@onlyda.com

Share:: >

Adding to cart succeed

(ship from america )Autel MaxiIM IM508S Key programmer 2 years free update

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

Product Name: (ship from america )Autel MaxiIM IM508S Key programmer 2 years free update
Item NO.: 3Autel-13B
Weight: 6.5 kg = 14.3300 lb = 229.2808 oz
Volume: 7000 CBM
Category: Autel programmer / Remote > Autel key programmer
Brand: Autel
Creation Time: 2024-06-24

(ship from Czech Republic ）Autel MaxiIM IM508S Key programmer 2 years free update

(ship from america ）Autel MaxiIM IM508S Key programmer 2 years free update

Product Description

Autel MaxiIM IM508S Key Programming Tool with XP200 Programmer All System Diagnostics Get Extra OTOFIX Smart Key and One year Update

Autel MaxiIM IM508S Key Programming Tool

MaxiIM IM508S is a fast, easy-to-use, and ultraportable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface.

Equipped with the XP200 key programmer, IM508S is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508S provides you with superior special functions. IM508S is the perfect solution for shopkeepers and technicians who demand affordable and powerful IMMO and diagnostic services.

Product Highlights:

Total 2 years free update (1 Year Free Software Update and extra 1 year free software update)
Get Extra OTOFIX Smart Key

Powerful RK3566 processor

7” 1024x600 LCD capacitive touchscreen

Internal reliable 64GB Memory

Android Operating System for fast boot-up and multitasking

Powerful combination of key programming/all system diagnostics/advanced maintenance services

Smart Mode for guided and automated key learning

Expert Mode for advanced key learning

Read PIN/CS (all key lost) , key generation, key learning, remote learning

IMMO ECU reset/adaptation, refresh/coding

Transponder read/write, EEPROM/MCU read/write

Powerful OE level diagnostics for more than 80 US, Asian and European makes and models

Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

NEW! Support active test and complete special functions

Product Functions:

IMMO & Key Fob Programming for DIYers and Locksmiths

If you want to do something for IMMO systems or car keys, Autel IM508S scanner with XP200 key programmer can help you with the following: read & write to Immobilizer/Engine/EEPROM/MCU; reset/code/backup IMMO ECU; read PIN (Add Key/All Key L~st); key generation/key learning/remote learning, etc. Smart Mode will provide you with guided and automated key learning functions, step by step, save you much trouble! Note: Functions above vary by cars.

The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.

Bi-Directional Control/ Active Test

What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Key Programming tool IM508S can perform real active tests that can send commands to the vehicle's ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues. Note: NOT universal. Please check compatibility.

OE-level Diagnostic Capability, Same as MK808

Busy for a long time but can't find what's wrong with the car? Take it easy! Autel IM508S scanner, equipped with the same diagnostic capability as MK808, can scan all available car systems on 80+ US, EU and Asian car makes to read & clear DTCs, view live data, freeze frame data, and ECU info, perform active tests and compatible with MV108(not included). With just a few simple clicks, you can quickly locate the issues to win more time and money.

34 Kinds of Maintenance Services, Everything for you.

Oil reset, EPB, TPMS, BMS, brake bleed, aftertreatment, injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Language Change, Headlamp, CHG tire size, TEC learn, ABSSRS, Cylinder, VGT learn, Speed & PTO, Clutch, Trans adaptation, Airbag reset, A/F setting, Automatic Start/Stop, electronic water pump start, EGR, FRM reset, transport mode, HV battery, ACC, A/C, rain/light sensor.

How much did you spend on maintaining your car? In fact, experience tells us that just a small repair service may cost a lot of money. So Autel IM508S scanner are actively reducing the unnecessary expense by integrating 28+ services, meeting many daily service needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc. Note: Functions vary by vehicle, please send VIN to us to check compatibility before order.

Smart Mode–accesses to a function menu where each function is configured as a smart guide system.

Expert Mode–accesses to a function menu where each function is separated from each other.

IMMO:

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.

The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.

IMMO & Key Programming :

1.Read PIN/CS (AII key Lost)

2.Key Generation

3.Key Learning/Remote Learning

4.Backup/Restore IMMO Data

5.IMMO ECU Reset/Adaptation,Refresh/Coding

6.BMW FEM/BDC Key Learning and ECU Adaptation

7.VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More

Autel MaxiIM IM508S Function List:

All Systems Diagnostics

AutoVIN / AutoScan

Read / Erase Codes

View, Record, Playback Live Data

View Freeze Frame Data

Shop and Data Manager Applications

Key Read / Write

EEPROM / MCU Read / Write

Read PIN / CS (All Key Lost)

Key Generation

Key Learning

Remote Learning

Backup / Restore IMMO Data

IMMO ECU Reset / Adaptation

IMMO ECU Refresh / Coding

BMW FEM / BDC Key Learning and ECU Adaptation

VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Keys Lost, and More

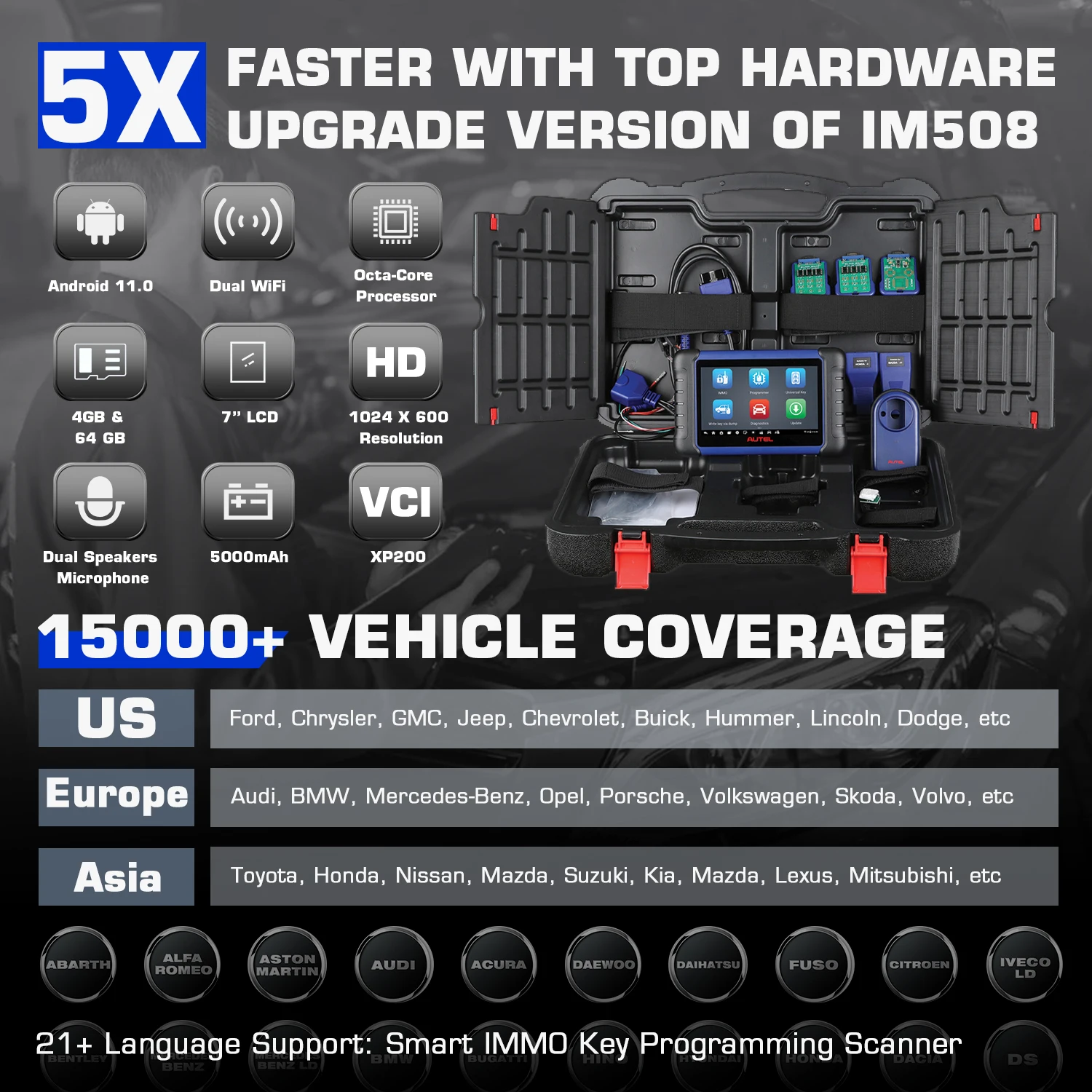

Product Specifications:

Operating System	Android 11
Processor	Rockchip RK3566 Quad core Processor：4x 1.8GHz(A55)
Memory	64GB
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0 USB2.0 Wi-Fi Micro SD card slot(supports up to 64GB)
Sensors	Ambient light sensor for brightness auto changing
Power and Battery	3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life	Around 4.5 hours of continuous use
Battery Charging Input	5V/1.5A
Power Consumption	500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Operating Humidity	5%-95% non-condensing
Net Weight	885g(2.31\|b.)
Supported Automotive Protocols	ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

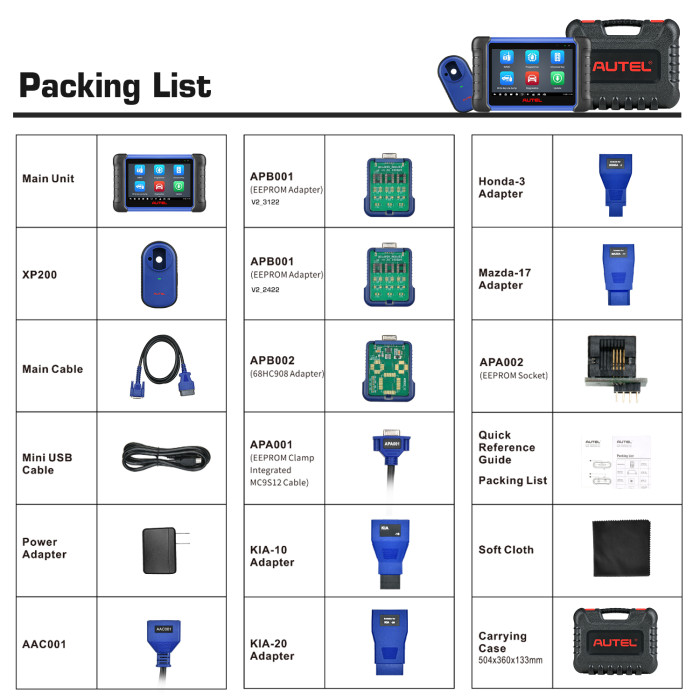

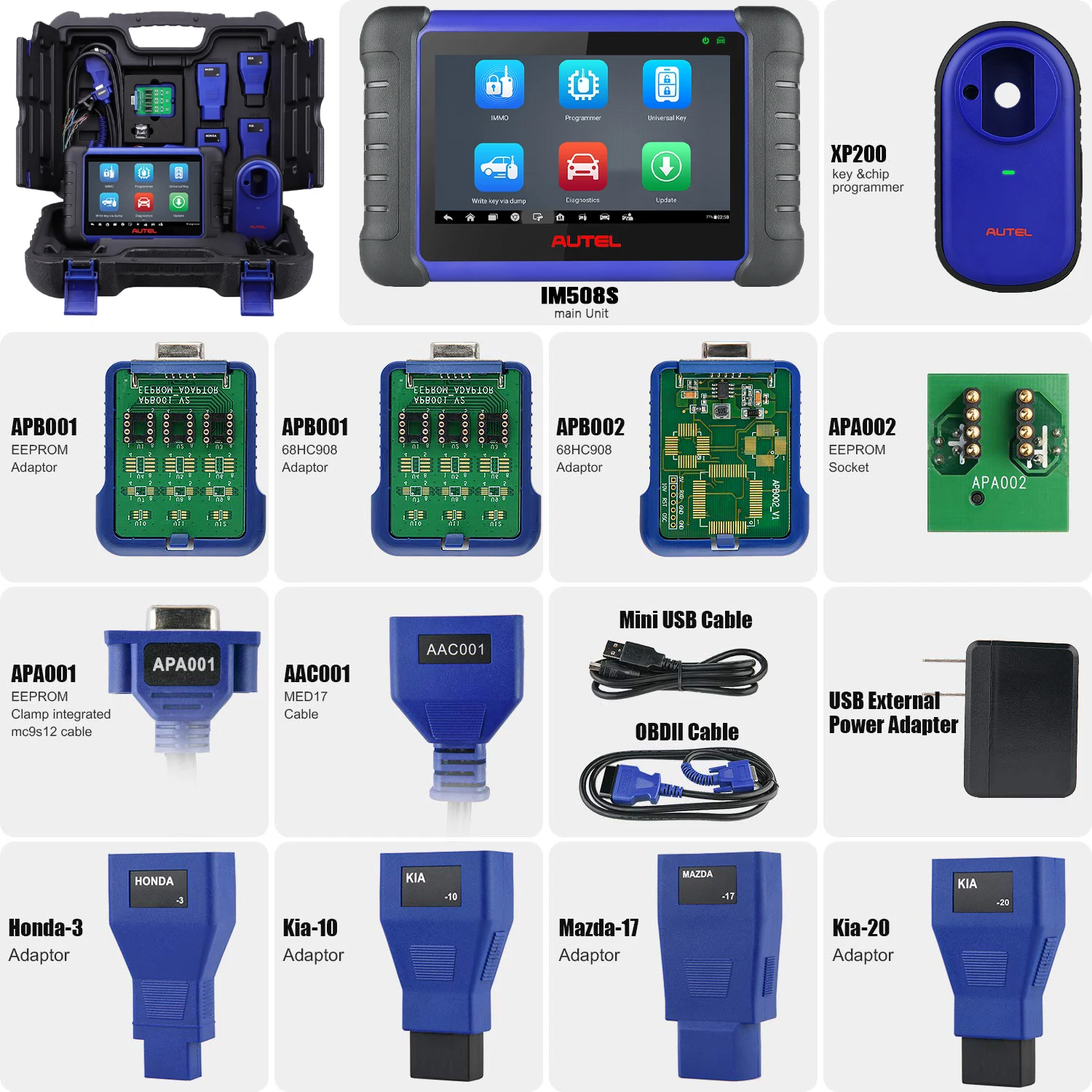

Package Includes:

1PC x MaxiIM IM508S Tablet

1PC x XP200 Key Programmer

1PC x Main Cable

1PC x Mini USB Cable

1PC x USB External Power Adapter

1PC x APB001 (EEPROM Adapter)

1PC x APB002 (68HC908 Adapter)

1PC x APA002 (EEPROM Socket)

1PC x APA001 (EEPROM Clamp Intergrated MC9S12 Cable)

1PC x AAC001 – MED17 Cable

1PC x KIA-10 Adaptor

1PC x KIA-20 Adaptor

1PC x Mazda-17 Adaptor

1PC x Honda-3 Adaptor

1PC x Carrying Case

1PC x Quick reference guide

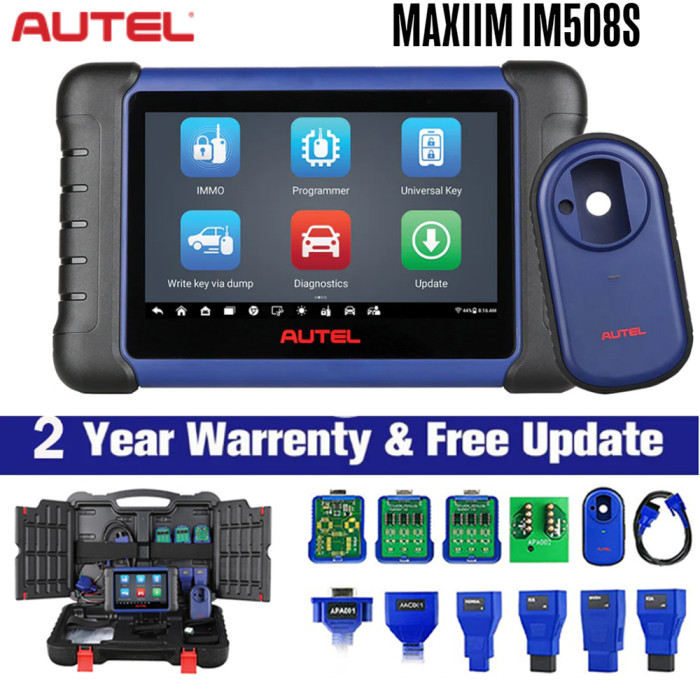

Autel MaxiIM IM508S:

MaxiIM IM508S is a 7-inch, Android-based touchscreen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu.

Language Support List:

English, Spanish, French, German, Russian, Japanese, Korean, Polish, Portuguese, Swedish, Persian, Turkish, Thai, Vietnamese, Hebrew, Arabic, Indonesian, Italian, Dutch

(Send Serial Number to the Seller to Activate Language After receiving the goods)

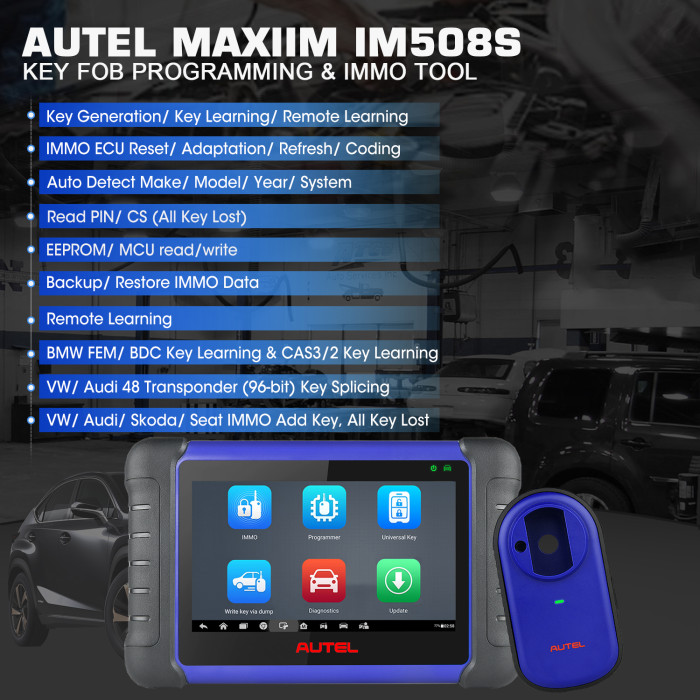

Key Programming Function:

● Smart Mode and Expert Mode for Newcomer and Mechanic
● PIN/ CS Reading (All Key Lost)
● Key Generation/ Key Learning/ Remote Learning
● Key Read & Write
● MCU Read/ Write & EEPROM Read Write
● Backup / Repair IMMO Data
● IMMO ECU Reset/ Adaptation
● IMMO ECU Regeneration/ Coding
● BMW FEM/ BDC Key Programming and ECU Adaptation
● Volkswagen/ Audi Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost, etc.

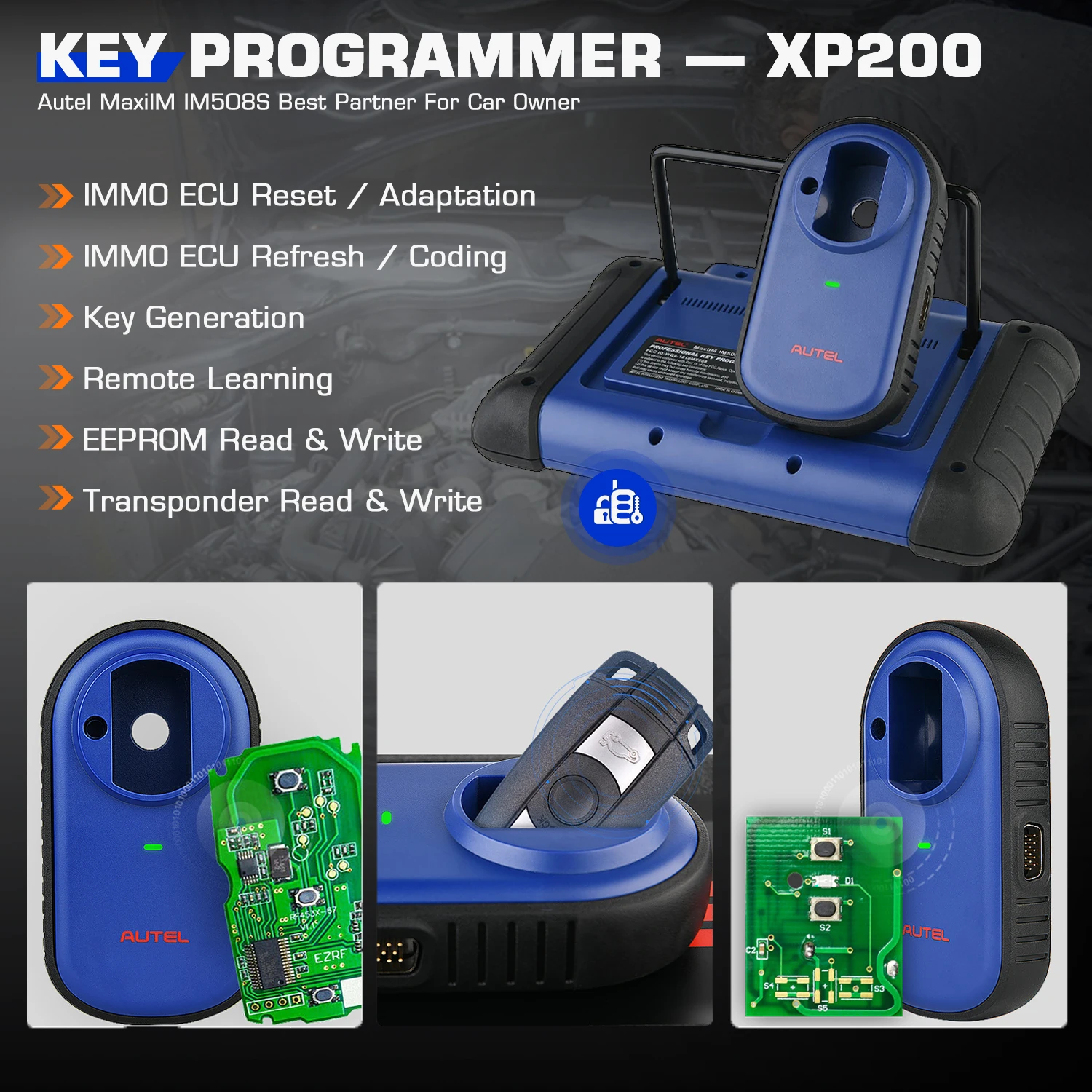

XP200 Key Programmer:

The XP200 Key Programmer: The Best Partner of IM508S and Provides Smart IMMO Anti-theft Functions:
● Key Generation
● Key Programming, Add Key, All Key Lost
● Remote Learning
● EEPROM Read & Write
● Transponder Read & Write
● IMMO ECU Reset & Adaptation
● IMMO ECU Refresh & Coding

Reset Service Function:

IM508S Professional Diagnostic Scanner Can Diagnose All Car Systems:

● Oil reset: Perform reset for a new calculation of the Engine Oil Life system once changed the oil.

● EPB service:For the maintenance of the electronic braking system's safety and efficiency.

● BMS service: Evaluate the battery charge state, and register the battery replacement.

● DPF service: Works for Diesel Particulate Filter Systems with DPF regeneration, DPF component replacement teach-in, and DPF teach-in after replacing the engine control unit.

● SAS service: Helps clear the faulty steering angle sensor memories and calibrate the steering angle sensor.

● TPMS service: Display sensor IDs, input TPMS sensor replacement IDs, and test sensors.

● ABS Brake Bleeding: Get a firm brake pad after air exhaustion

- etc.

Bi-directional Control & Active Test:

Bidirectional Control Can Send and Receive Information from Vehicle Control Modules. Accesses the vehicle's Subsystems and Components to Check Faults.

All System OE-Level Diagnosis:

IM508S Can Perform OE-Level Diagnosis on All Available Vehicle Modules Including PCM, ECM, EPS, PDM, BCM, TPM, SCCM and ABS, SRS, Engine, Transmission, Brake System and etc.

Smart Mode + Expert Mode:

IM508S Provides Smart Mode and Expert Mode to Guide Both Peoples Performing IMMO-related Functions, Including Key Learning, Remote Control Learning, Remote Control Add, All Key Lost and etc.

● Smart Mode: Allows Car Owners Doing Automated Key Learning with Smart Guide.

● Expert Mode: Allows Professionals to Customize Each Module to Choose the Nest Solution.

Specification:

Operating System	Android 11.0
Processor	Rockchip RK3566 Quad-core Processor:4x 1.8GHz(A55)
Memory	4GB RAM + 64GB ROM
Display	7-inch LCD Capacitive Touchscreen with 1024x600 Resolution
Connectivity	- Mini USB 2.0 - USB2.0 - Wi-Fi - Micro SD Card Slot(Supports Up to 64GB)
Sensors	Ambient Light Sensor for Brightness Auto Changing
Power and Battery	3.7 V/ 5000 mAh Lithium-polymer Battery Charges via 5 VDC Power Supply
Battery Charging Input	5V/ 1.5A
Power Consumption	5000 mA (LCD on with Default Brightness, Wi-Fi on)@3.7 V
Net Weight	885g (2.31\|b.)
Supported Automotive Protocols	ISO9141-2, ISO14230-2, ISO15765, K/ L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
