For Xhorse VVDI BMW Key Programming Tool
or Whatsapp: +86-15889291896 or
Email: info@onlyda.com
-
- Product Name: For Xhorse VVDI BMW Key Programming Tool
- Item NO.: For Xhorse-18
- Weight: 4 kg = 8.8185 lb = 141.0958 oz
- Volume: 6300 CBM
- Category: Xhorse VVDI Brand > XHorse Programmer
- Brand: xhorse vvdi
- Creation Time: 2022-05-23
- For Xhorse VVDI BMW Key Programming Tool
XHORSE VVDI BIMTOOL PRO Update Version of VVDI for BMW Tool
Highlights of VVDI BIMTOOL Pro:

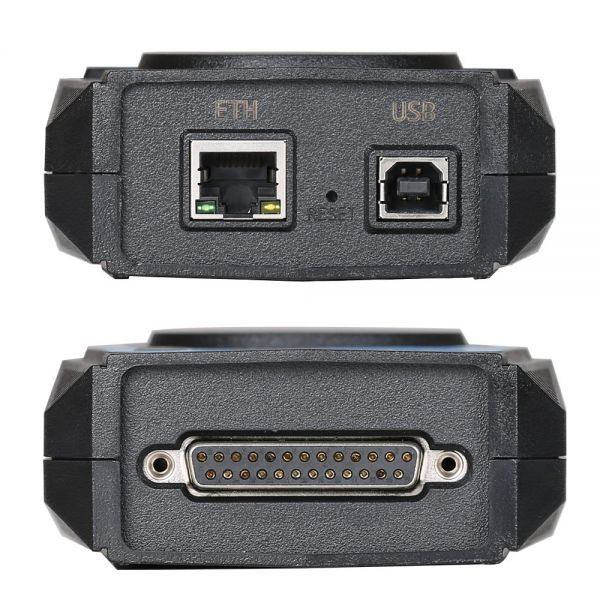

1. Add Ethernet Port
Aside of USB port, which will speed up the programming / coding, usually it will only take several minutes instead of dozens of hours when using the USB cable.
2. Add Wifi Connection (WIFI 802.1b/g, 150 Mbps high-speed connection, and WIFI OTA upgrade)
When upgrading the machine firmware, you can connect the WIFI.
3. Operating System: Compatible with WIN7 8 10 etc, no computer operation system limitation.
4. Language: English, Italian, Spanish, Deutsch, Hungarian, Polish etc.
5. Support for BMW ECU Programming(NBT/CIC), for BMW E-Sys and Rhelngold Diagnostic System, able to replace the specialized devices, and greatly speed up the F/G Classis Programming.
(Being connected via the network cable)
6. Support DolP Vehicle/ Module Programming
7. Support directly read ISN data without disassembling the ECU (N13/N20/N55/N63)
Xhorse VVDI BIMTool Pro Functions:
1. E-Series programming, coding, DTCs
1). Support autodetect car chassis
2). Support scan all car units
3). Support calculate all configuration units
4). Support read/write car configuration(FA)
5). Support input HW/ZB number to programming
6). Support calculate default coding from FA
7). Support edit detail coding information, change car config
8). Support many languages DTC code
2. F-Series programming, coding, DTCs
1). Support autodetect car chassis
2). Support read/write car configuration(FA)
3). Support calculate programming files from unit, car, whold database
4). Support calculate default coding from FA
5). Support edit detail coding information, change car config
6). Support detail special function list from coding
7). Support many languages DTC code
3. CAS1/CAS2/CAS3/CAS3+/CAS3++ISTAP OBD key learning
1). Support read key information, write key inforamtion
2). Support key learning
3). Support read/write EEPROM
4). Support read ECU/gearbox synchronize codes
5). Support write ECU/gearbox synchronize codes
6). Support synchronize ECU and CAS
7). Support synchronize CAS and ELV
8). Support read ISN via OBDII
9). Support reset KM via OBDII
10). Support disable key/enable key
4. CAS4(1L15Y)/CAS4+(5M48H) OBD key learning
1). Support read CAS encrypt key via OBDII
2). Support key learning via programmer and via ignition switch
3). Support disable key/enable key
4). Support erase key position
5). Support reset KM via OBDII
6). Support read ISN via OBDII
7). Support backup/restore coding
8). Support update original CAS4 file
5. FEM/BDC OBD key learning
1). Support read FEM/BDC encrypt key via OBDII
2). Support key learning via programmer and via ignition switch
3). Support disable key/enable key
4). Support erase key position
5). Support reset KM via OBDII
6). Support read ISN via OBDII
7). Support backup/restore coding
8). Support exchange used FEM/BDC
9). Support close/open transport mode
10). Support reset ECU lock
11). Support switch on ignition without working key
6. CAS EEPROM dump key learning
1). Support EWS1, EWS2, EWS3, EWS4, CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y), CAS3++ISTAP(0L15Y, 0M23S)
2). Support prepare dealer key via programmer
3). Support disable key/enable key
4). Support read ISN from working key
7. 8HP Gearbox renew
1). Support clear ISN in 8HP gearbox
2). Support backup/restore coding
3). Support reset adaptation information
8. Read synchronize code from E-Series ECU: Support MEV9N46L, MSV70, MSS60, MS450, N62 etc
9. Read E-Series/F-Series ECU ISN via OBDII
1). Support MSV80, MSV801, MSD80, MSD81, MSD802, MSD812, MSD851
2). Support MED17xx/MVD17xx/MEVD17xx/MV1722
3). Support MED172/MEV17N46/ME17N45
4). Support MEVD172Y/MEVD172/MEVD1725/B38/X63TU
10. Support exchange ECU and CAS
1). Support write ECU ISN via OBDII
2). Support write ECU VIN via OBDII
3). Support change ECU ISN and VIN with EEPROM dump
4). Support chagne CAS1/CAS2/CAS3/CAS4 ISN and VIN with EEPROM dump
11. CAS repair(OBD&EEPROM)
1). Support repair ISTAP CAS
2). Support repair CAS EEPROM(Service mode EEPROM), you can start engine after repair the file(CAS1,CAS2,CAS3,CAS3+,CAS3++ISTAP)
12. CAS3+/CAS4+ lost all dump file support restore ISN and VIN
1). Support CAS3+(1L15Y) encrypt version
2). Support CAS3++(ISTAP) version
3). Support CAS4+(5M48H) version
13. File KM calibration
1). Support EWS1, EWS2, EWS3, EWS4
2). Support CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y, 0M23S)
3). Support CAS4(1L15Y), CAS4(5M48H, 1N35H)
4). Support E-Series dashboard EEPROM(M35080)
5). Support F-Series dashboard EEPROM(35160, 35128)
14. Unlock HITAG2 key: Support lock hitag2 key made for BMW TOOL via programmer
15. EWS3/EWS4 can read EEPROM, write EEPROM via CAS PLUG
For more details, please read the User Manual.
For BMW BIMTool Pro E /F Chassis Programming & Coding:
●Program / Code for BMW Exx
1. Connect Car
Can auto detect vehicle model, read module information, support chassis: E36, E38, E39, E46, E52, E53, E60, E63, E64, E65, E66, E67, E70, E71, E72, E83, E85, E86, E89, E90, E91, E92, E93, K1X, K24, KH2, R50, R52, R53, R55, R56, R57,
RR1,.etc chassis
2. Read and write Vehicle configuration(FA/FP)
Can read the configuration information inside of vehicle module, and to change the vehicle configuration information for replacing second-hand module.3. Registered unit information from gateway / Calculate adaptive control unit
