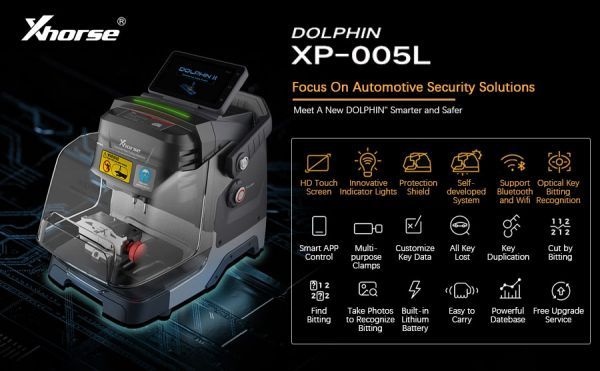

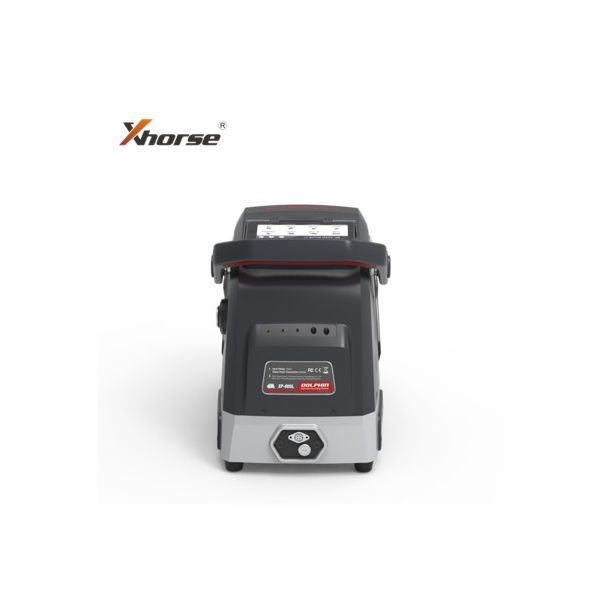

Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen
Looking for tech support? Please contact sales manager
or Whatsapp: +86-15889291896 or
Email: info@onlyda.com
or Whatsapp: +86-15889291896 or
Email: info@onlyda.com
Adding to cart succeed
Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen
- Item NO.: 2XP-005L
- Weight: 20 kg = 44.0925 lb = 705.4792 oz
- Volume: 9999.999999 CBM
- Category: Xhorse VVDI Brand > Xhorse key Cutting Machine
- Creation Time: 2024-08-15
- Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen
Product Description

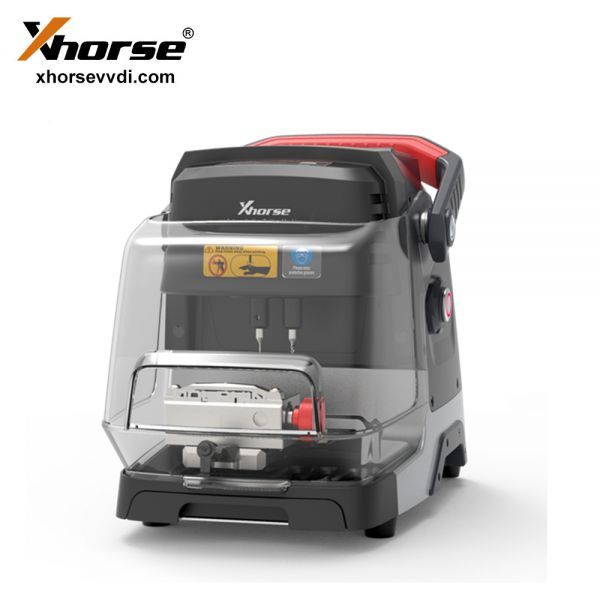

- Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen and Protective Cover
- Smart LED indicator, Angle adjustable LCD touch screen
- M5 Clamp, no need to repeated install and uninstall to replace clamps
Xhorse XP-005L Features:- Buit-in database
- Support APP Control
- Intelligent operating system
- Smart LED indicator
- Angle adjustable LCD touch screen
- Support WiFi and Bluetooth
- All-aluminum body structure
- High precision ball screw
- High rigidity cross rail
- Cutter and probe work in parallel
- Support Multiple Clamps
- Support Sided/Track/Tibbe Key
- Update online: Machine firmware and database upgrade via WiFl directly

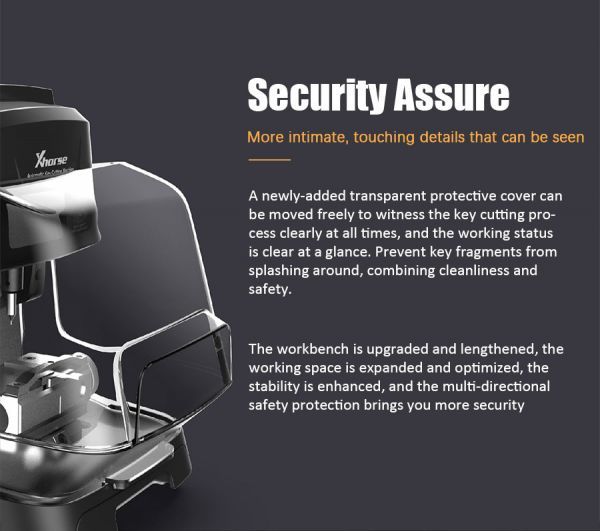

A newly-added transparent protective cover can be moved freely to witness the key cutting process clearly at all times, and the working status is clear at a glance.
Prevent key debris from splashing around, combining cleanliness and safety.
The workbench is upgraded and lengthened, the working space is expanded and optimized, the stability is enhanced, and the multi-directional safety protection brings you more security.

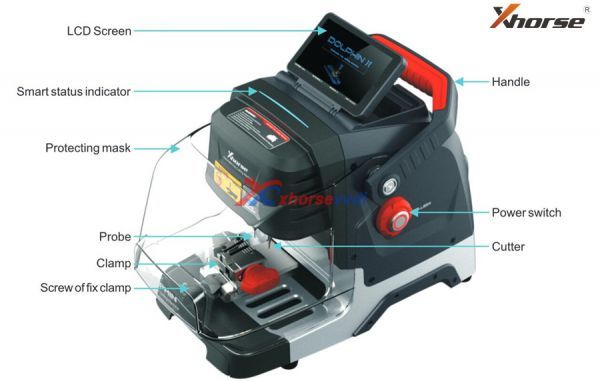

Xhorse XP005L Structure:
Xhorse Dolphin ii Software overview
Supporting self-calibration
Supporting key duplication and cutting for vehicle keys
Supporting universal key decode for multiple key types
Operation on APP through Bluetooth
Xhorse Dolphin XP-005L Clamp:

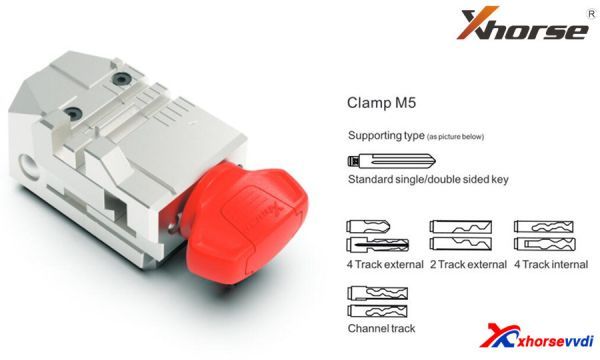

1. M5 Clamp
M5 clamp with two sides of A and B. Users can turn the clamp surface to cut according to cutting needs, it's no need to repeated install and uninstall to replace clamps. Here are the method of using the M5 clamp.
1) Loosen the "key lock knob" counter clockwise to make the right slider of the clamp the right limit
2) Turn the movable module clockwise, and turn the clamp from side a to side B. Tighten the key lock knob" clockwise to lock the clamp.

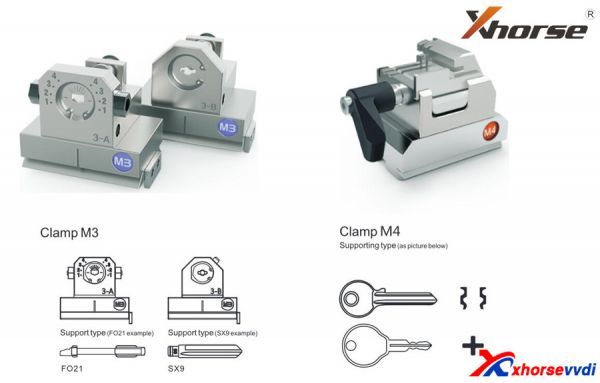

2. Optional M3, M4 Clamp (You need buy separately)
Xhorse Dolphin XP-005 L Highlights
HD Touch Screen
Users can directly complete operation on the screen. High definition screen minimizes eye fatigue.
The machine adopts an angle-adjustable 5-inch capacitive touch screen. You can set the angle of the screen based on actual needs.
Innovative Colorful Indicator Lights
The indicator light changes color with the change of real-time working status.
Massive Vehicle Database
Built-in powerful database covers over 100 car brands, 2,000 car models and 20,000 key data. Accurate key data, detailed parameters, and clear key graphics. We provide a lifelong database upgrade service for free!
Portable Solution
Thanks to its compact design, lightweight, much easier to take it outside and provide users outdoor and roadside services.
Built-in well-known lithium battery, stable and reliable, support cutting works without power supply access.

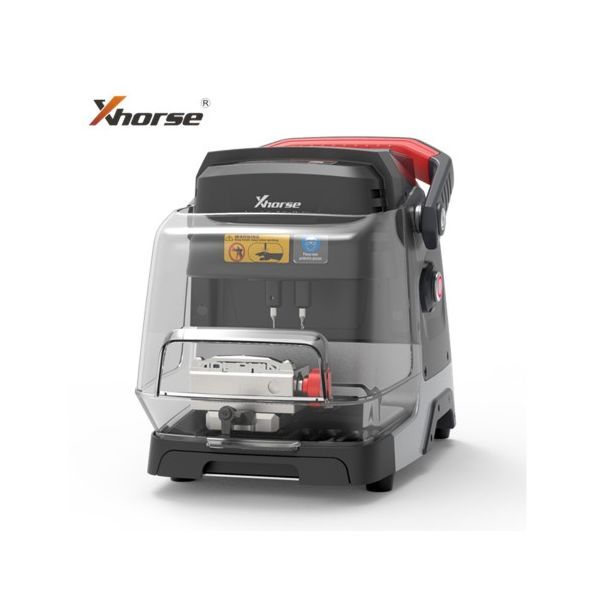

Transparent Protective Shield
The transparent shield enables users to check the real-time working status while preventing metal debris from spattering.
Manufacture Craftsmanship
All-aluminum body structure; Manufactured by German-made DMG CNC machine to guarantee high precision cutting results. The finished keys passed the rigorous testing of the Optical Instrument.
A wider workbench, strong and steady, make your works more productive.
Maintain excellent performance even under extreme weather.
Multi-purpose Clamps
A wide duplication availability guaranteed by a variety of functional clamps, support multiple key types, standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track internal, F021 & Citroen SX9 keys, residential keys, etc.
Support Bluetooth and WiFi
Support directly upgrade online via WiFi connection.
Control the machine by the Xhorse APP on your smartphone or other intelligent terminals via Bluetooth.
Dolphin XP-005L Specification:
Input voltage: 24V DC
Power: 160W
Principal axis rotation speed: 12500rpm
Motor Torque: 0.15Nm
LCD resolution: 1280*720
Working temperature: 10-50°C
Humidity: 10-90%
Machine size: 390mm:220mm*270mm
Package size: 495mm*400mm*360mm
Net weight: 13kg
Gross weight: 18.5kg
Xhorse Dolphin XP-005L Vs Dolphin XP-005ItemXhorse Dolphin XP005LXhorse Dolphin XP-005ImageScreenAn angle-adjustable 5-inch capacitive touch screen, and users can directly complete operation on the screen.LCD resolution 1280*720.NullBluetoothYes. Control the machine by the Xhorse app on your smart phone or other intelligent terminals via bluetoothYes,use smart cellphone or tablett to download APP via Bluetooth.WifiYes, directly upgrade online via wifi connectionNullProtecting maskYes, prevent metal debris from spattering.NullSmart status indicatorYes (in blue, yellow, red color)NullMultiple ClampsStandard equipped M5 clamp (M1 and M2 2 in 1), optional M1/M2 Clamp, M3 Clamp, M4 Clamp.Support clamps M1, M2, M3(optional) and M4 (optional)Hexagon bar wrench2mm+4mm 3mm hexagon bar wrench, 3mm hexagon bar wrench,6mm hexagon bar wrench2mm hexagon bar wrench, 4mm hexagon bar wrenchWeightNet weight 13KG, Gross weight 18.5KGNet weight 15KG, Gross weight 18KGLanguageEnglish, Spanish, French, Polish, Italian, Portuguese, etcEnglish, Spanish, French, Polish, Italian, Portuguese, etcUpdate onlineMachine firmware and database upgrade via Wifi directlyOnline software update on APP, update through Xhorse"Upgrade Kit".Key databaseYes, same as XP005YesFunctionSelf-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types.Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types.
Xhorse Dolphin XP005L Package List:
1pc x Condor Dolphin IIMachine Body
1pc x M5 Clamp for Single/Double sided, Channel-track keys
1pc x 1.5mm Cutter
1pc x 2.5mm Cutter
1pc x 1.0mm Probe
1pc x Power cord
1pc x Power Supply Adapter
1pc x Brush
If you have any questions, please do not hesitate to contact us.
