OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/ Key Master DP

OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/ Key Master DP

US$ 102.50
Customized Requirements
Stock ( 9652 )
Looking for tech support? Please contact  sales manager
or Whatsapp: +86-15889291896 or
Email: info@onlyda.com

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/ Key Master DP
color:red,size:xxl
Subtotal: US$ 0
View My Cart
    • Product Name: OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/ Key Master DP
    • Item NO.: OBDSTAR-21
    • Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
    • Volume: 580 CBM
    • Category: Key Programmer > OBDSTAR Brand
    • Creation Time: 2023-09-29
    • OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/ Key Master DP

    OBDSTAR P003 KIT Bench/Boot Adapter for Reading ECU CS PIN Working With OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ X300 PRO4/ Key Master DP


    Product Description

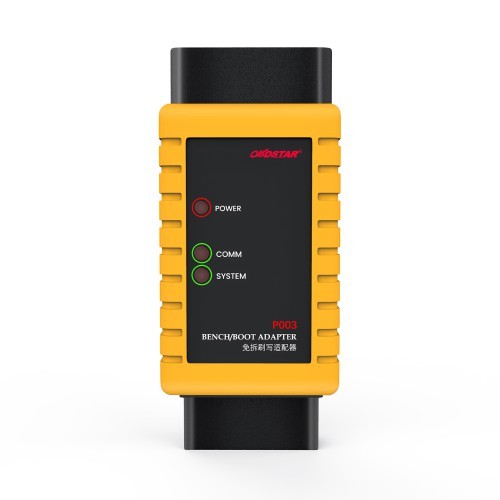

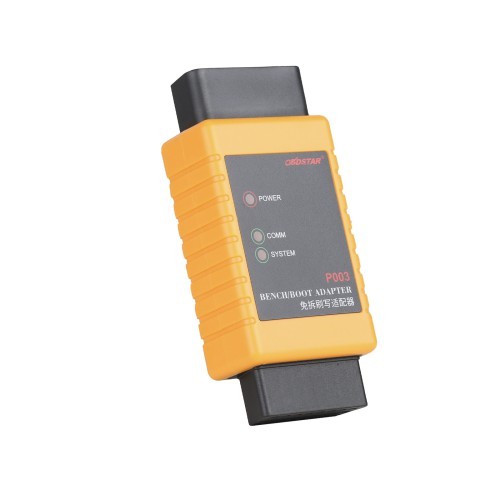

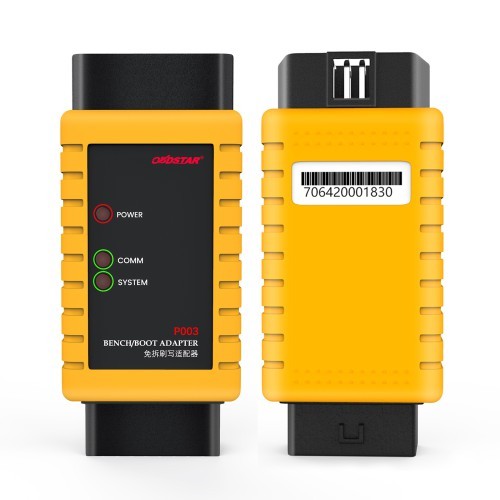

    OBDSTAR P003 Bench/Boot Adapter is designed for Reading ECU CS PIN ect, can work With OBDSTAR IMMO series tablets, such as OBDSTAR X300 DP, X300 DP PLUS, OBDSTAR DC706, X300 PRO4, Key Master DP.
    OBDSTAR P003 KIT P003 Adapter with ECU Bench Cables Working With OBDSTAR X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP

    P003 Kit, working with OBDSTAR IMMO series tablets, supports reading and writing ECU eeprom & flash data and caculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc..

    Can be working with OBDSTAR IMMO series tablets:
    OBDSTAR X300DP Plus Key Master DP Plus
    X300 Pro4 Key Master 5
    OBDSTAR DC706 ECU TCU Clone Tool

    Notice:
    New version of OBDSTAR P003 KIT ( SE156 ) can work with DC706 only
    Old version ( SE156-B ) can work with X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP

    OBDSTAR P003 Kit Highlights:
    1.Portable Design
    2.Easy Operation
    3.High Performance

    Functions:

    1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
    2. Bosch MED17.4.4 reading eeprom , PinCodeP003 KIT
    3. Bosch EDC17C60 reading eeprom , PinCodeP003 KIT
    4. Bosch MD1CS018 reading eeprom, PinCodeP003 KIT
    5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
    6. Bosch ME17XX reading & writing eeprom, flash
    7. T87A, 6HP reading & writing TCM eeprom, flash

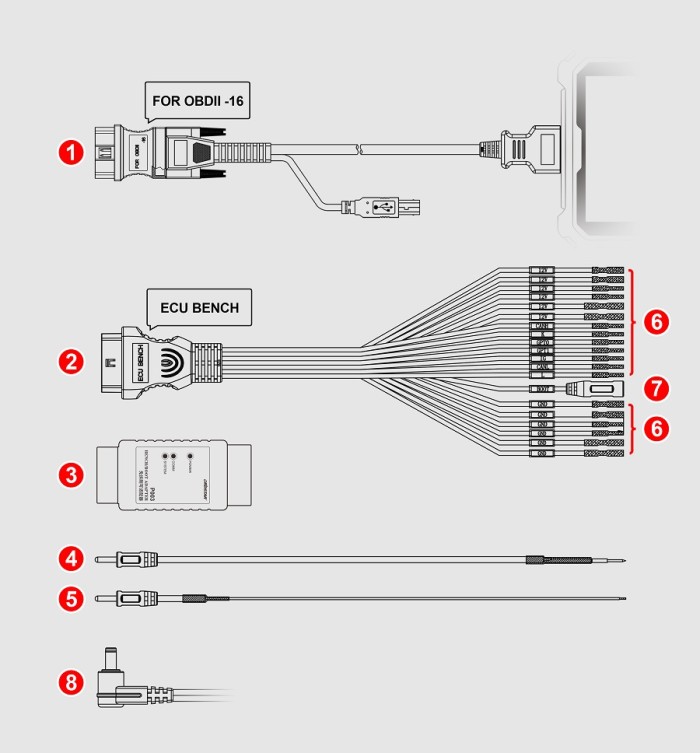

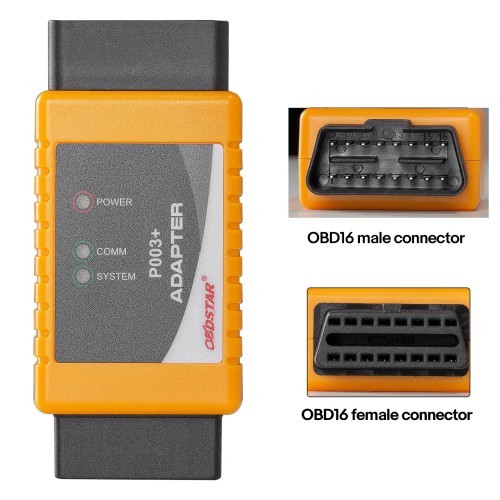

    OBDSTAR P003 Kit Overview:

    1.Diag cable OBDconnector(male)
    2.Connect P003 connector(female)

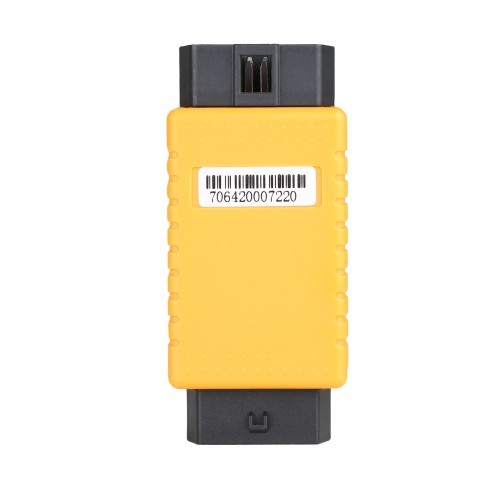

    3. P003 adapter
    4.Boot jumper(spring needle)
    5.Boot jumper(welding)
    6.ECU pin connector
    7. ECU boot connector
    8.12V power



    Connecting Methods:

    BENCH MODE
    Step 1:Connect 1,2,3 together as pic below;

    Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
    Step3:connect 12V power with diagnostic device;
    Step4: read data on diagnostic device.

    BOOT MODE
    Step 1: Connect 1, 2, 3 together as pic below;

    Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
    Step3:connect 7 with 4 or 5 and connect it to ECU;
    Step4:connect 12V power with diagnostic device;
    Step5: read data on diagnostic device.

    OBDSTAR P003 Kit Function
    For reading BOSCH ECU data, CS, Pincode etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.. More models are in development...

    OBDSTAR P003 Kit Supported ECU List
    Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5
    HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro6/TC298TP) etc.

    Specifcations:

    Voltage 12V
    Weight  100g
    Dimension 113*75*31mm

    OBDSTAR P003 KIT Package:

    1. P003 adapter

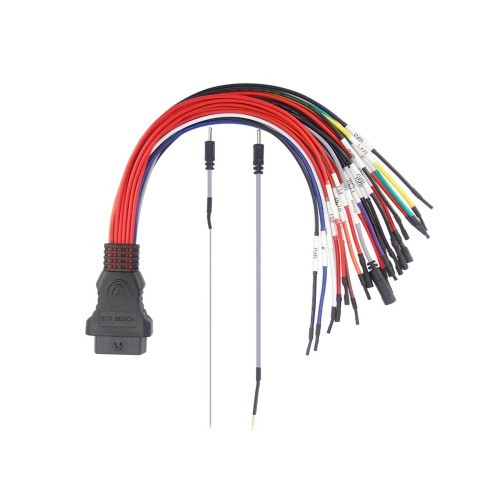

    2. ECU BENCH cables



    OBDSTAR P003 Kit Supported ECU list:

    1. Continental PCR2.1(TC1796)

    2010-2014 Audi A1 (8X) 1.6L Diesel

    2009-2012 Audi A3 (8P) 1.6L Diesel

    2009-2013 Seat Altea 1.6L Diesel

    2010-2016 Seat Ibiza IV (6J) 1.6L Diesel

    2010-2012 Seat Leon II 1.6L Diesel

    2014 Seat Toledo (KG) 1.6L Diesel

    2010-2013 Skoda Octavia II (1Z) 1.6L Diesel

    2010-2013 Skoda Fabia II (5J) 1.6L Diesel

    2010-2011 Skoda Roomster (5J) 1.6L Diesel

    2013-2014 Skoda Rapid (NH) 1.6L Diesel

    2011-2013 Skoda Superb (3T) 1.6L Diesel

    2012/2015 Skoda Yeti (5L) 1.6L Diesel

    2010-2015 VW Caddy (2K) 1.6L Diesel

    2009-2013 VW Golf VI 1.6L Diesel

    2010-2013 VW Golf Plus 1.6L Diesel

    2011-2014 VW New Beetle (9C) 1.6L Diesel

    2011 VW Passat (B7) 1.6L Diesel

    2009-2014 VW Polo V 1.6L Diesel

    2010-2015 VW Touran (1T) 1.6L Diesel
    ...

    2. Bosch MED17.4.4(TC1793)

    Citroen C3 Mk2

    Citroen C4 Gran Picasso

    Citroen C4 MK2

    Citroen C5 (RD/TD)

    Citroen C6

    DS DS3

    DS DS5

    DS DS6

    Peugeot 2008

    Peugeot 208

    Peugeot 3008 (P84)

    Peugeot 3008 (T84)

    Peugeot 308 (T9)

    Peugeot 4008

    Peugeot 408

    Peugeot 508
     ...

    3. Bosch EDC17C60(TC1793)

    Citroen Berlingo

    Citroen C-Elysee

    Citroen C3 Aircross

    Citroen C3 MK2

    Citroen C3 Picasso

    Citroen C4 Cactus

    Citroen C4 MK2

    Citroen C4 Picasso

    Citroen Jumpy

    Citroen Spacetourer

    DS DS3

    DS DS4

    DS DS5

    Peugeot 2008

    Peugeot 208

    Peugeot 3008 (P84)

    Peugeot 308 (T9)

    Peugeot 5008 (T87-P87)

    Peugeot 508

    Peugeot Expert

    Peugeot Ranch/Partner

    Peugeot Traveller

    Opel/Saturn/Vauxhall Combo E

    Opel/Saturn/Vauxhall Crossland X

    Opel/Saturn/Vauxhall Grandland X

    ToyotaProace
     ...

    4. Bosch MD1CS018

    Mahindra BS-6
     ...

    5. Bosch MED17XX/EDC17XX

    EDC17U01(TC1766)

    EDC17C46(TC1767)

    EDC17C54(TC1797)

    EDC17C64(TC1797)

    EDC17CP44(TC1797)

    EDC17CP44 MS(TC1797)

    MED17.5(TC1766)

    MED17.5.1(TC1766)

    MED17.5.20(TC1766)

    MED17.5.5(TC1766)

    MED17.5.5 HW2(TC1766)

    MED17.5.2(TC1767)

    MED17.5.5(TC1767)

    MED17.5.5 HW2(TC1767)

    MED17.5.21(TC1782)

    MED17.5.25(TC1782)

    MED17.1.1(TC1797)

    MED17.1.1 MS(TC1797)

    MED17.1.6(TC1797)
    ...

    VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

    6. Bosch ME17XX

    ME17.5.6(TC1767)

    ME17.5.20(TC1767)

    ME17.1.1(TC1797)

    ME17.1.6(TC1797)
     ...

    VW/Audi/Skoda/Seat, Bentley...

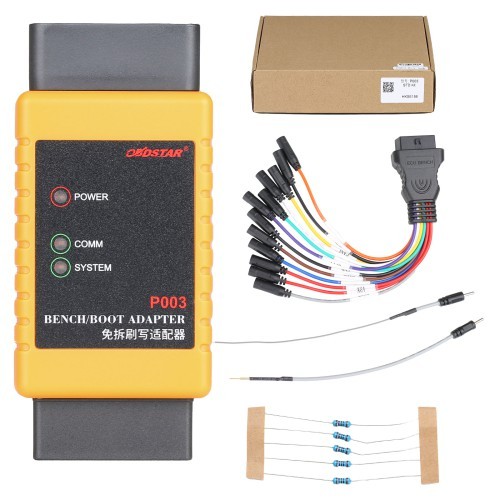

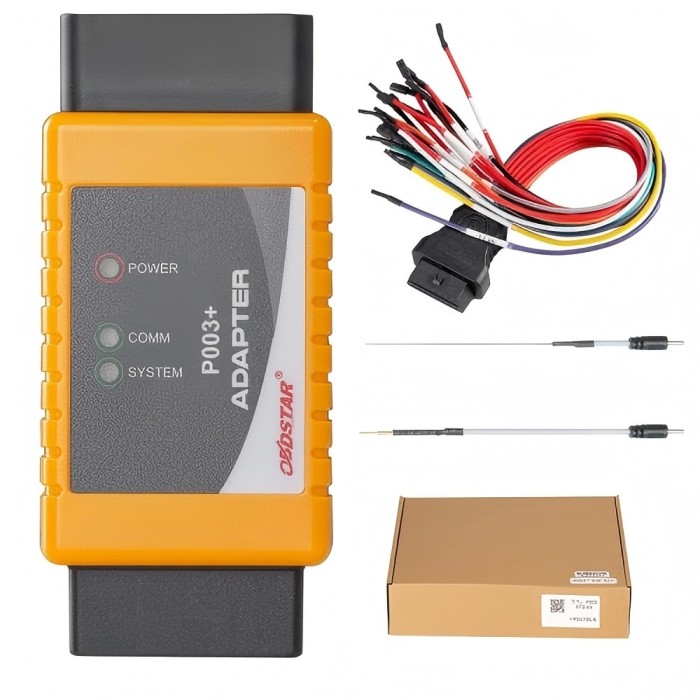

    New Version of OBDSTAR P003 KIT Package Includes:

    1pc x P003 adapter
    1pc x ECU BENCH jumper

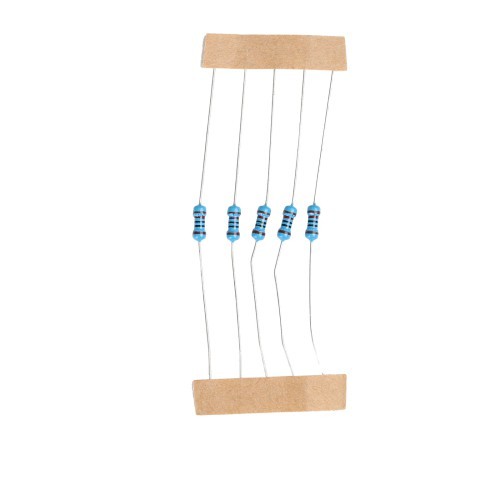

    5pcs x 120 ohm resistors

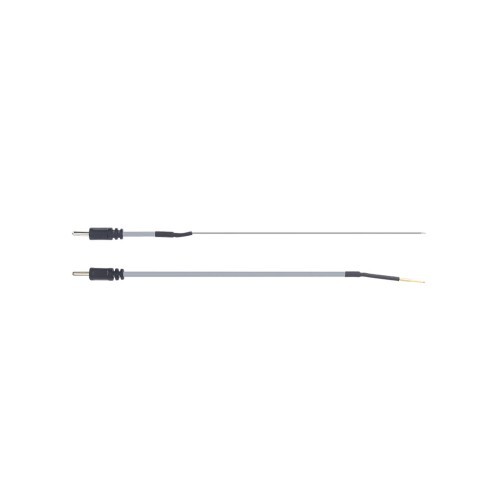

    1pc x Boot jumper(spring needle)
    1pc x Boot jumper(welding)

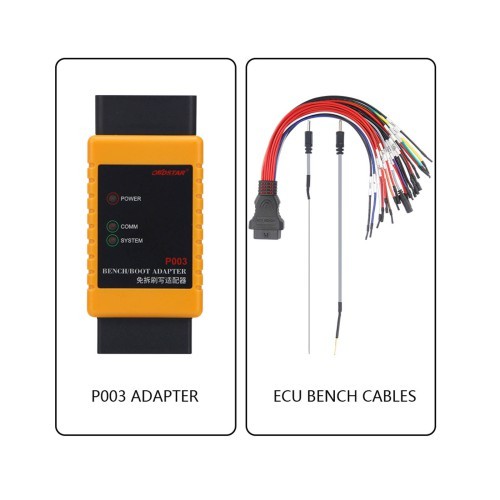

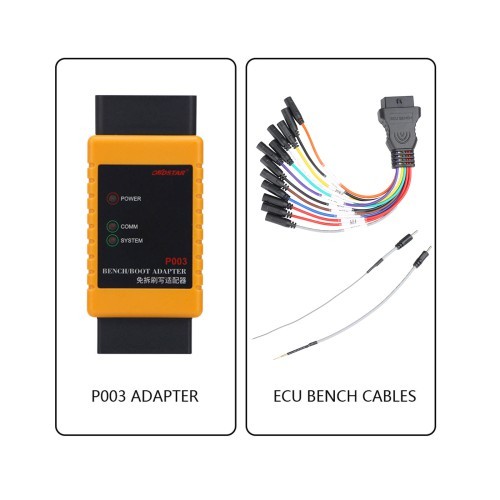

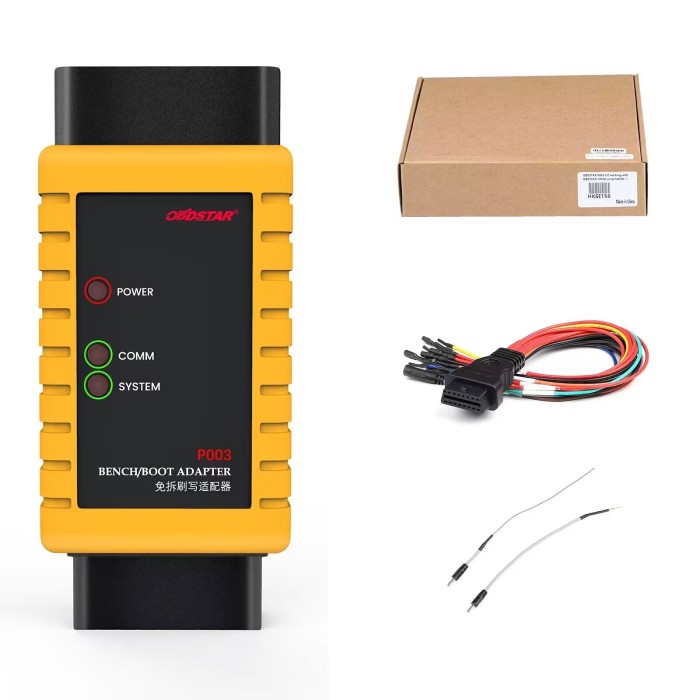

    Old version of OBDSTAR P003 KIT Package Includes:

    1pc x P003 adapter

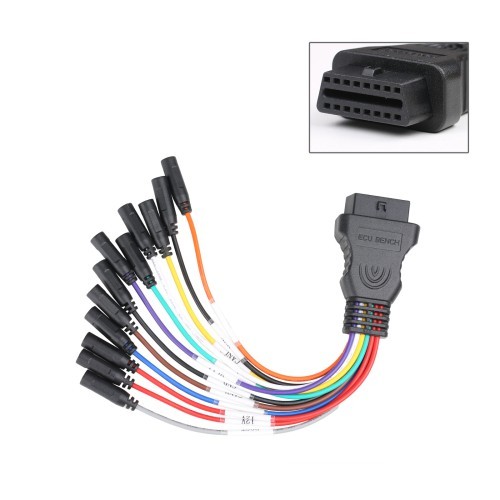

    1pc x ECU BENCH cables
