2023 For VAG for VW Gearbox Adapter cables Read and Write work with ECU FLASH for DQ250 DQ200 VL381 VL300 DQ500 DL501
or Whatsapp: +86-15889291896 or
Email: info@onlyda.com
-
- Product Name: 2023 For VAG for VW Gearbox Adapter cables Read and Write work with ECU FLASH for DQ250 DQ200 VL381 VL300 DQ500 DL501
- Item NO.: For VW-YS03
- Weight: 0.5 kg = 1.1023 lb = 17.6370 oz
- Volume: 850 CBM
- Category: Ecu/ simulator/ platform/immobilizer > For VW
- Creation Time: 2023-06-09
2023 For VAG for VW Gearbox Adapter cables Read and Write work with ECU FLASH for DQ250 DQ200 VL381 VL300 DQ500 DL501

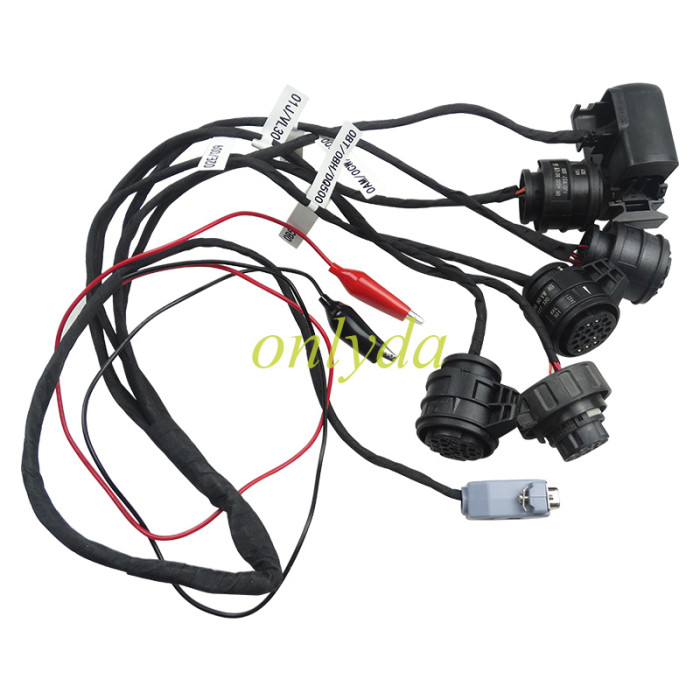

Gearbox Adapter for VAG DQ250 DQ200 VL381 VL300 DQ500 DL501 Read and Write work with ECU Programmer
Functions:
1.Read the Chinese car via OBD.
3.Read the BOOT mode according to the chip model
4.Read the encrypted ECU password (Read the password of encrypted ECU first, then read data)
5. Support cars made in China with ME17 TC1728/1767 for data reading & writting and password reading.
Workable Transmission Model:
V-AG: DQ200 (0AM)
V-AG: DQ200MQB/G2 (0CW)
V-AG: DQ250C (02E) K-Line
V-AG: DQ250E/F (02E)
V-AG: DQ250MQB (0D9)
V-AG: VL300/V30 (01J/0AN) K-Line
V-AG: VL300/V30 (01J/0AN)
V-AG: VL381 (0AW)
V-AG: DQ500 (0BH/0BT)
V-AG: DL501/G2 (0B5)
V-AG: DQ200/MQB Boot (MICRO)
V-AG: DQ200/MQB Boot (EEPROM)
V-AG: DQ200G2 Boot (EEPROM)
V-AG: DQ250E/F/MQB Boot (MICRO)
V-AG: DQ250E/F/MQB Boot (EEPROM)
V-AG: VL300/V30 BSL (FLASH)
V-AG: VL300/V30 BSL (EEPROM)
V-AG: VL381 Boot (MICRO)
V-AG: VL381 Boot (EEPROM)
V-AG: DL501 Boot (MICRO)
V-AG: DL501 Boot (EEPROM)
V-AG: DL501G2 Boot (MICRO)
V-AG: DL501G2 Boot (EEPROM)
Read Chinese car via OBD:
China: Chery, Great Wall, Lifan, SAIC ME17 (ME17.8.8)
China: Chery, Great Wall, Lifan MT80 K-Line Calibration (De-lphi MT80)
China: Chery, Great Wall, Lifan MT80 CAN-bus (Del-phi MT80)
Read the BOOT mode according to the chip model:
Infi-neon: TC1762/TC1766 MICRO (1504KB)
Infi-neon: TC1762/TC1766 EEPROM (32KB)
Infi-neon: TC1792/TC1796 MICRO (2048KB)
Infi-neon: TC1796 MICRO+EXT (4096KB/6144KB)
Infi-neon: TC1796 EXT (2048KB/4096KB)
Infi-neon: TC1796 EEPROM (128KB)
Infi-neon: TC1792 EEPROM (64KB)
Infi-neon: TC1738/TC1767 MICRO (2048KB)
Infi-neon: TC1738/TC1767 EEPROM (64KB)
Infi-neon: TC1797 MICRO (4096KB)
Infi-neon: TC1797 MICRO+EXT (6144KB/8192KB)
Infi-neon: TC1797 EXT (2048KB/4096KB)
Infi-neon: TC1797 EEPROM (64KB)
Infi-neon: TC1724/TC1728 MICRO (1536KB)
Infi-neon: TC1724/TC1728 EEPROM (64KB)
Infi-neon: TC1782/TC1784 MICRO (2560KB)
Infi-neon: TC1782/TC1784 EEPROM (128KB)
Infi-neon: TC1793/TC1798 MICRO (4096KB)
Infi-neon: TC1793/TC1798 MICRO+EXT (6144KB/8192KB)
Infi-neon: TC1793/TC1798 EXT (2048KB/4096KB)
Infi-neon: TC1793/TC1798 EEPROM (192KB)
Read the encrypted ECU password (Read the password of encrypted ECU first, then read data):
Bo-sch: Support Chinese car ME17 TC1728/1767 data reading & writing and password reading
Bo-sch: BM-W/MB/VAG GPT
Bo-sch: Fo-rd/Op-el/Vo-lvo GPT
Bo-sch: BM-W TPROT8+
Bo-sch: VAG TPROT8+
Bo-sch: Kia/Hyundai/Honda TPROT8+
Bo-sch: Chry-sler/Je-ep/Do-dge/F-iat TPROT8+ [Test]
Bo-sch: VAZ/UAZ ME17.9.71
Conti-nental: for Kia/Hyundai/SsangYong SIM2K-24X/C201
Conti-nental: for Ford EMS2204
Conti-nental: for Ford EMS2207
Conti-nental: for Ford EMS2211
Conti-nental: for Ford SID208
Conti-nental: for Ford SID209
Conti-nental: for Ford Mondeo 4 SID807EVO
Conti-nental: for Ford Focus 3/Transit Connect SID807EVO
Conti-nental: for Citroen/Peugeot SID208
for Kia/Hyundai: De-lphi MT86 EEPROM (16KB)
for Mercedes Benz: Del-phi CRD3.1 EEPROM (32KB)
Attention:
For VAG for Audi Gearbox Adapter for DQ250 DQ200 VL381 VL300 DQ500 DL501 Read and Write work with K-T-MFlash
