Home>Xhorse VVDI Brand>Xhorse key Cutting Machine>V1.5.3 Xhorse Dolphin XP-005 Key Cutting Machine Works on Mobile Phone APP Multi-Language
V1.5.3 Xhorse Dolphin XP-005 Key Cutting Machine Works on Mobile Phone APP Multi-Language
Adding to cart succeed
V1.5.3 Xhorse Dolphin XP-005 Key Cutting Machine Works on Mobile Phone APP Multi-Language
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: V1.5.3 Xhorse Dolphin XP-005 Key Cutting Machine Works on Mobile Phone APP Multi-Language
- Item NO.: XP-005
- Weight: 19 kg = 41.8878 lb = 670.2053 oz
- Volume: 9650 CBM
- Category: Xhorse VVDI Brand > Xhorse key Cutting Machine
- Creation Time: 2022-05-23
- V1.5.3 Xhorse Dolphin XP-005 Key Cutting Machine Works on Mobile Phone APP Multi-Language
Product Description
- Xhorse Dolphin XP-005 Key Cutting Machine is with a rich database, multi-purpose clamps, and built-in lithium battery.
- Dolphin XP005 is used on App via Bluetooth for both IOS and Android.
>>Full capabilities of Condor XC-Mini. With a built-in battery inside.
>>Newest Firmware version: V1.5.3 Update online via Xhorse Update Kit Software. Database ver. V81
>>Xhorse APP Language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese (free to switch now)
Dolphin XP005 New Information:
1.Free Download Xhorse Dolphin XP-005 User Manual
2.Xhorse Dolphin cutting machine release read bitting from key blade photo, support get bittings from photo.
3.Support cut plastic key and aluminum key.
Top 16 Good Reasons for this excellent key duplicator:- XP005 has all the capabilities of Condor XC Mini.
- Key Duplication
- All Key Lost
- Massive vehicle data
- Cut by Bitting
- Find bitting
- Support self-calibration
- Optical recognition bitting
- Support universal key decode for multiple key types
- Take photos to recognize bitting
- Customize key data
- Built-in lithium battery
- Smart APP control
- Multi-purpose clamps
- Lifelong free upgrade service & technical support
- Support sided/Track/Dimple/Tibbe keys
Dolphin Key Cutting Machine Features:
1. With a smart App, fast and Effective Solutions are provided to make you an expert in all key lost fields.
To first complete recognition bitting by professional tools. Enter the vehicle code. Make sure the bitting code and then click "Cutting Key"
SMART APP CONTROL
Support multi-language · Easy to Use · Time-Saving · Upgrade for free
DOLPHIN XP-005 can be easily controlled by Xhorse APP on your phone, tablet PC, and other intelligent terminals to complete Cut by Bitting, Key Duplication, All Key Lost, Find Bitting, Key data Customization, Optical recognition bitting, Take photos to recognize bitting, etc.
2. Rich Database
Our built-in powerful database covers over 100 car brands, 2,000 car models, and 20,000 key data. We provide a lifelong database upgrade service for free!
3. Built-in Lithium Battery
Select well-known lithium battery, stable and reliable, support cutting work without no power supply access.
4. High Precision Cutting Results
Key cutting results competition
Keys cut by some machines VS Keys cut by DOLPHIN XP-005
5. LED light and Non-Slip lifting handle
The status indicator LED light is ideal for checking key cutting status clearly, and also ensuring the regular works in the dark.
Ergonomic design, comfortable and effortless.
Used to secure the machine in a fixed position and moving it with better control and pulling power.
The excellent key duplicator maintains stable performance even in extreme weather.
6. Multi-Purpose Clamps
Standard Clamps: M1 Clamp and M2 Clamp
M1 Clamp supports key types: standard single sided, standard double sided.
M2 Clamp supports key types: 2 track external, 4 track external, Dimple, Channel track, 4 track internal;
Optional Clamps: M3 and M4 Clamp
M3 Clamp supports key types: Ford F201 and Citroen SX9
M4 Clamp supports key types: Residential key types
7.Timely and Portable solutions
Compact design, its net weight, only 13kg, much easier to provide users outdoor and roadside services.
Xhorse Dolphin vs Condor XC-Mini Comparison:Xhorse Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet, and install a dedicated APN.
Item Xhorse Dolphin XP005 Condor XC-MINI Condor XC-MINI Plus Screen No touch screen, only display battery, Bluetooth status. Fixed touch screen. Screen with adjustable angle, easier to adjust proper viewing angle Spindle Mechanical shaft +60W DC motor
(with a foreign model) Electric spindle brushless 300W
built-in angular contact bearingElectric spindle brushless 300, built-in angular contact bearing Electric spindle brushless 300, built-in angular contact bearing Transmission mechanism T-shaped screw + anti-backlash nut Ball screw 3-Axis precision ball screw, more accurate and stable than T Screw transmission guide Roller guide Cross-track Cross-track shell Base aluminum alloy die-casting
the upper body is made of plastic shell
the body is integrated aluminum alloy die-casting.Plastic outer casing body is formed by body alloying die casting. All alumina's main body, plastic shell, larger space than condor mini. Fixture Standard fixture(M1,M2) (M3 M4 Optional Clamp) Manipulation No touch screen, no built-in database, operate on Phone APP Quick start, with touch screen, built-in database Quick start, with touch screen, built-in database Offline operation not support stand by support Dedicated app Work with Xhosre APP Work with Xhosre APP(KM03, KM05) Work with Xhosre APP(KM03, KM05) Built-in battery built-in lithium battery one-time full charge Optional Accessory:Power Supply Adapter with Built-in Battery Optional Accessory:Power Supply Adapter with Built-in Battery protecting mask Comprehensive protection Comprehensive protection VVDI MB binding Yes. After bind, VVDI MB is one token free everyday. Yes. After bind,VVDI MB is one token free everyday. Yes. After bind,VVDI MB is one token free everyday. Cutting speed 1X SPEED 2X SPEED 2X SPEED Update Database update in APP, firmware update via Xhorse update kit software Online Update Online Update, support offline file update. weight 18Kg 21Kg 22.9Kg Warranty 1 year 3 years 3 years
Dolphin XP005 Parameters:
Power 100W
USB Port USB 2.0
Power Parameter 12~24V
Motor Torque 0.15Nm
Working temperature -10~50℃
Working Humidity 10%~90%
Battery Capacity 64.75W.h
Standby Power 15W
Motor Rotation Speed 10000-13000rpm

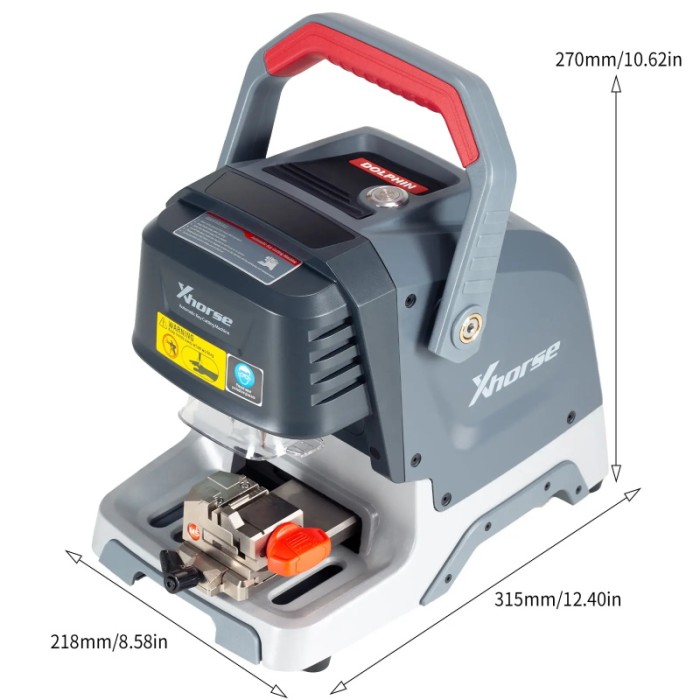

Machine Dimension 315x218x270mm
Package Dimension 510x315x345mm

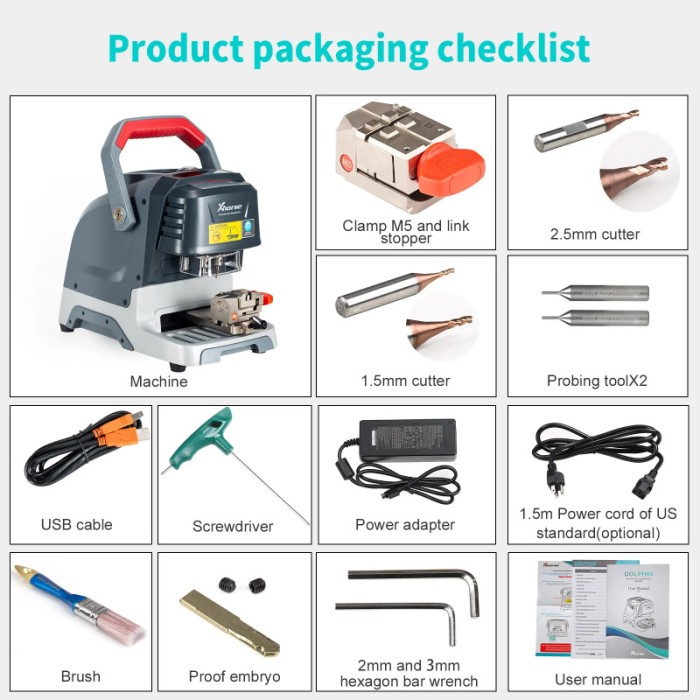

Xhorse Dolphin XP005 Package List:
1pc x Condor Dolphin Machine Body
1pc x M1 Clamp for Single/Double sided keys
1pc x M2 Clamp for Channel-track keys
1pc x 1.5mm Cutter
1pc x 2.0mm Cutter
You May Also Like
-
Xhorse xp-009c key cutting machineUS$ 336.39
-

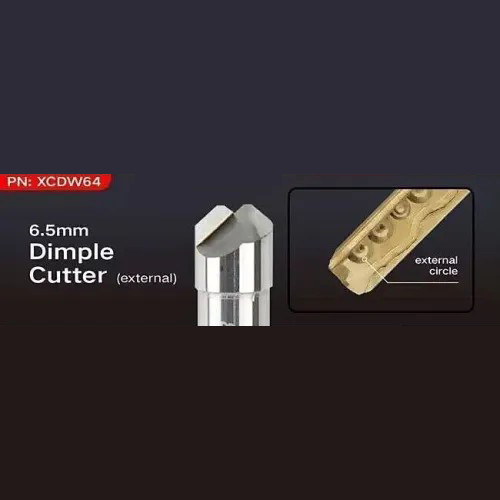

XCDW64 6.5mm Dimple Cutter(external)US$ 11.58
-
